Resumen de: US2025158560A1
Photovoltaic roof tiles are provided with interlocking edges; however, these can be expensive to manufacture and time-consuming to install. A more cost-effective option of tiling may use a double-lap tile arrangement. Because plain tiles have no interlocking edges, water can leak through the joins between tiles. This requires a third tile to be placed below the join to catch any water passing through. With double-lap tiles, a significant part of each tile remains covered after installation, such that a relatively small surface area is in view of the sun. Photovoltaic roof tile 302 is useable with double-lap tiles 301, the photovoltaic roof tile 302 having a tile width equal to an integral multiple of the double-lap tile width. In this way, such photovoltaic roof tiles 302 may be arranged with conventional double-lap roof tiles 301 to increase the proportion thereof available to sunlight 305, 307, without risking ingress of water.
Resumen de: DE102024130130A1
Die Erfindung betrifft eine Plane für ein Fahrzeug oder einen Anhänger, aufweisend zumindest ein Solarmodul.Es ist daher Aufgabe der Erfindung die Nachteile des Standes der Technik zu beseitigen und eine Plane für Fahrzeuge oder deren Anhänger bereitzustellen, auf der zumindest ein Solarmodul angeordnet ist und dieses zumindest eine Solarmodul bei Beschädigung leicht austauschbar ist.Die Lösung dieser Aufgabe erfolgt durch die in den Ansprüchen aufgeführten Merkmale.
Resumen de: AU2023397228A1
The present application applies to the field of solar cell technology and provides an electrode structure, a back-contact solar cell, a cell assembly, and a photovoltaic system; a plurality of first secondary gates of the electrode structure include a first collection gate line and a first confluence gate line; the first primary gate includes a first edge primary gate disposed on one side near the first edge of the back-contact solar cell, and one end of the first confluence gate line is connected to the first edge primary gate, the other end running through the first discontinuous zone on the second primary gate adjacent to the first edge primary gate is connected to the first primary gate adjacent to the first edge primary gate. In this way, through the first confluence gate line, the current collected by the first edge primary gates in the edge area can be directly converged with the first primary gates adjacent to the first edge primary gates, without welding on the first edge primary gates, which can avoid stress concentration in the welding process, improve the yield and reliability of assembly, while providing a relatively high photoelectric conversion efficiency.
Resumen de: DE102023131546A1
Die Erfindung betrifft einen Dachhaken zur Befestigung einer Montageeinheit an einer Dachkonstruktion und/oder an einem Dachelement, aufweisend einen Grundträger zur Befestigung des Dachhakens an der Dachkonstruktion und/oder dem Dachelement, und einen Träger mit einem Montageabschnitt zur Befestigung der Montageeinheit am Dachhaken.
Resumen de: DE102023211216A1
Fahrzeugaußenstruktur (12) mit Solarpaneel (1), wobei eine Basisplatte entweder von der Fahrzeugaußenstruktur oder von einer davon separaten Basisplatte (2) gebildet ist, die eine Schicht von monokristallinen Solarzellen (4) oder eine Dünnschicht-Photovoltaik (4) trägt, die zur Fahrzeugaußenfläche hin abgedeckt sind, wobei im Schichtaufbau des Solarpaneels (1) in einer der Schichten Beleuchtungselemente verbaut sind.
Resumen de: DE102023131682A1
Die Erfindung betrifft eine Verkaufseinrichtung in Form eines Tiny Houses (1), mit einer Grundfläche bis insbesondere 60m2, einem Boden (1a), einem Dach (1b), einer Vorderseite (1c), zwei Seitenwänden (1d) und einer Rückwand (1a), wobei das Dach (1b) zur Stromversorgung mit einer Solaranlage, insbesondere mindestens einem Balkonkraftwerk (3) ausgestattet ist, wobei im Inneren Warenautomaten (6) für zu verkaufende Produkte aufgestellt sind und die Verkaufseinrichtung mit einer oder mehreren Gratis-Schnellladestationen (7, 8) für Handys und/oder Ebikes und/oder E-Scooter und/oder mit einem oder mehreren Luftkompressoren (9) für Reifen von Fahrrädern und/oder E-Scooter ausgestattet ist.
Resumen de: DE102023131077A1
Die Erfindung betrifft ein Solardach-Bausatz, aufweisend- eine Vielzahl an Solarschindeln (1), die jeweils einen Schindelkörper (12) aufweisen, an den Aufhängungen (11) angeordnet und/oder ausgebildet sind,- eine Vielzahl an Auflagen (2), die jeweils aufweisen• einen langgestreckten Auflagekörper (20),• einen Aufnahmeabschnitt (21), der ausgebildet sind, eine der Aufhängungen (11) einer der Vielzahl an Solarschindeln (1) aufzunehmen, und• einen Befestigungsabschnitt (22), der an einem Untergrund befestigbar ist.Ferner betrifft die Erfindung ein Dach, das den Solardach-Bausatz aufweist.
Resumen de: DE102023131256A1
Zu dem Zweck, eine mobile PV-Anlage 1 zu schaffen, die es erlaubt, einfach montiert und in Betrieb genommen zu werden, wenig Bauraum beansprucht und eine mechanische Beschädigung beim Transport der PV-Module M zu vermeiden, wird eine PV-Anlage 1 mit PV-Modulen M, einem Energiespeicher S und einem Laderegler vorgeschlagen, wobei die mobile PV-Anlage 1 einen, die PV-Module M aufnehmenden, Modulrahmen R umfasst, wobei die PV-Module M ausziehbar gestapelt in dem Modulrahmen R angeordnet sind und wobei die die mobile PV-Anlage 1 an die ausziehbaren PV-Module M angeschlossene Aufstellfüße F aufweist, die die PV-Module M auf einem Untergrund U abstützen.
Resumen de: DE102023131354A1
Versorgungscontainer (VC) für mindestens ein Gebäude (G), der ein integriertes Energiemanagementsystem (EMS) aufweist, das über eine Kommunikations-Schnittstelle (K-INT) des Versorgungscontainers (VC) an eine Haussteuerung (HST)des Gebäudes (G) zum Austausch von Daten anschließbar ist, wobei das Energiemanagementsystem (EMS) des Versorgungscontainers (VC) verschiedene in einem Rahmengestell des Versorgungscontainers (VC) montierte Versorgungsmodule (VM) steuert oder regelt, wobei die Versorgungsmodule (VM) zur Bereitstellung von angeforderten Versorgungsressourcen (VR) Energie von in dem Rahmengestell des Versorgungscontainers (VC) montierten Energiespeichermodulen (ESPM) beziehen, welche Energie in unterschiedlichen Energiespeicherformen (ESPF) zwischenspeichern, und wobei die Versorgungsmodule (VM) über zugehörige Versorgungschnittstellen (V_INT) des Versorgungscontainers (VC) entsprechende innerhalb des Gebäudes (G) vorgesehene Versorgungskreisläufe (VR) oder Versorgungsgeräte mit den angeforderten Versorgungsressourcen (VR) versorgen.
Resumen de: DE102023131549A1
Die Erfindung betrifft einen Dachhaken zur Befestigung einer Montageeinheit an einer Dachkonstruktion und/oder an einem Dachelement, aufweisend einen Grundträger zur Befestigung des Dachhakens an der Dachkonstruktion und/oder dem Dachelement, und einen Träger mit einem Montageabschnitt zur Befestigung der Montageeinheit am Dachhaken.
Resumen de: DE102023131545A1
Die Erfindung betrifft einen Dachhaken zur Befestigung einer Montageeinheit an einer Dachkonstruktion und/oder an einem Dachelement, aufweisend einen Grundträger zur Befestigung des Dachhakens an der Dachkonstruktion und/oder dem Dachelement, und einen Träger mit einem Montageabschnitt zur Befestigung der Montageeinheit am Dachhaken.
Resumen de: EP4554087A1
Bei einer Halterung (30) für eine Photovoltaik-Unterkonstruktion (31) an einem Gebäude wird vorgeschlagen, dass die Halterung umfasst:• einen Lochteller (1) mit Tellerfläche (2) und Durchgangsloch (4) sowie mit von der Ebene der Tellerfläche weg erstreckenden Gewindestutzen (3),• eine ringförmige, um den Gewindestutzen verlaufende Dichtungsmanschette (7),• ein schraubbares Zwischenstück (9) mit einer für Wasser undurchlässigen Sperre (14) zwischen zwei Enden,• einen Dichtungsring am ersten Ende des Zwischenstücks,• einen Deckel (16) am zweiten Ende des Zwischenstücks mit einer in einer Durchgangsöffnung (17) angeordneten Halteschraube (29), deren Schraubenkopf in einer Schraubenaufnahme (35) zwischen der Sperre und dem Deckel aufgenommen ist,• und wenigstens eine Verankerungsschraube (28) im Durchgangsloch des Lochtellers zur bestimmungsgemäßen Festlegung der Halterung an einem Gebäude.
Resumen de: EP4554089A1
Fahrzeugaußenstruktur (12) mit Solarpaneel (1), wobei eine Basisplatte entweder von der Fahrzeugaußenstruktur oder von einer davon separaten Basisplatte (2) gebildet ist, die eine Schicht von monokristallinen Solarzellen (4) oder eine Dünnschicht-Photovoltaik (4) trägt, die zur Fahrzeugaußenfläche hin abgedeckt sind, wobei im Schichtaufbau des Solarpaneels (1) in einer der Schichten Beleuchtungselemente verbaut sind.
Resumen de: CN119487747A
The system of photovoltaic solar panels comprises a plurality of photovoltaic solar panels (3) arranged in parallel and spaced rows (2) in an open field (F), thereby enabling agricultural or animal husbandry use of the area of the field (F) between said rows (2). Each photovoltaic solar panel (3) is carried by a support structure, in which there is inserted a tracking device configured to rotate the photovoltaic solar panel (3) during a diurnal motion of the sun. Each photovoltaic solar panel (3) comprises an array of double-sided photovoltaic solar cells (C) having opposite sides (A, B) exposed on a first side and a second side of the photovoltaic solar panel (3), respectively, to collect both direct solar radiation and diffused solar radiation. The tracking device is configured in such a way that the angle of inclination formed between the plane of each photovoltaic solar panel (3) and a vertical plane parallel to the longitudinal direction of the row (2) never exceeds a value of 45 DEG throughout the entire duration of the solar diurnal movement, unless at a temporary stage of the zenith of the sun, in which stage the solar panel (3) is positioned in the vertical direction of the row (2). The photovoltaic solar panel (3) is turned over within a period of time of no more than one hour. In this manner, the panel is controlled to move between a vertical position and a relatively close vertical position throughout the duration of the apparent motion of the sun, such that the p
Resumen de: EP4553402A1
Die Erfindung geht aus von einer Solarmodulbefestigungsvorrichtung mit einer Montageschiene (34, 36, 38, 40) zur Befestigung mehrerer Solarmodule(12, 14, 16, 18), wobei die Montageschiene (34, 36, 38, 40) zumindest eine zumindest im Wesentlichen durchgängige Auflagefläche (44, 46) aufweist, auf die die Solarmodule (12, 14, 16, 18) zur Befestigung aufschiebbar sind.Es wird vorgeschlagen, dass die Montageschiene (34, 36, 38, 40) zumindest ein Montagesicherungselement (66, 68) aufweist, das dazu vorgesehen ist, ein Aufschieben von Solarmodulen (12, 14, 16, 18) auf die Auflagefläche (44, 46) in einer Montagerichtung (204) zuzulassen und die Solarmodule (12, 14, 16, 18) in Montagepositionen gegen ein Verschieben entgegen der Montagerichtung (204) zu sichern.
Resumen de: EP4554088A1
L'invention concerne un ensemble (100) pour panneau photovoltaïque (102) comportant un réceptacle (104) recevant le panneau photovoltaïque (102) et une paroi longitudinale intérieure (104b) parallèle à une direction longitudinale (X), un couvercle (106) comportant un cadre (106a) disposé au-dessus du panneau photovoltaïque (102) et une paroi longitudinale extérieure (106b) en regard de la paroi longitudinale intérieure (104b), et au moins un système de fixation qui assure une fixation amovible desdites parois entre elles.
Resumen de: EP4554085A1
L'invention concerne un ensemble (100) pour panneau photovoltaïque (102) comportant un réceptacle (104) recevant le panneau photovoltaïque (102) et présentant un fond (104a), un couvercle (106) comportant un cadre (106a) arrangé au-dessus du panneau photovoltaïque (102), et au moins un système de fixation qui assure la fixation du couvercle (106) au réceptacle (104), où le fond (104a) est percé d'au moins une fenêtre (121), où pour chaque fenêtre (121), une languette (120) est arrangée dans la fenêtre (121) et présente deux premiers bords solidaires du fond (104a).
Resumen de: EP4553404A1
Die Erfindung betrifft einen Dachhaken zur Befestigung einer Montageeinheit (10) an einer Dachkonstruktion (12) und/oder an einem Dachelement (46), aufweisend einen Grundträger (14) zur Befestigung des Dachhakens an der Dachkonstruktion (12) und/oder dem Dachelement (46), und einen Träger (32) mit einem Montageabschnitt (34) zur Befestigung der Montageeinheit (10) am Dachhaken.
Resumen de: EP4553403A1
Die Erfindung betrifft einen Dachhaken zur Befestigung einer Montageeinheit (10) an einer Dachkonstruktion (12) und/oder an einem Dachelement (46), aufweisend einen Grundträger (14) zur Befestigung des Dachhakens an der Dachkonstruktion (12) und/oder dem Dachelement (46), und einen Träger (32) mit einem Montageabschnitt (34) zur Befestigung der Montageeinheit (10) am Dachhaken.
Resumen de: EP4554086A1
Bei einem Verfahren zum Verbauen von Solarpanels bei einem Gebäudeteil insbesondere auf einem Dach (15) werden eine Anzahl von Solarpanels (11) auf einer Auflagefläche (16, 17) des Gebäudeteils installiert, wobei die Solarpanels (11) durch ein Halte- und Stützsystem (20) in einer vorgegebenen Position auf dieser Auflagefläche (16, 17) gelegt und/oder befestigt werden. Die mehreren Solarpanels (11) und das diese tragende Halte- und Stützsystem (20) werden zumindest an einem separaten Montageplatz derart zusammengebaut, wie sie im geplanten montierten Endzustand auf dem Gebäudeteil verbaut werden. Anschliessend werden sie transportiert, durch ein Hebeorgan im zusammengebauten Zustand auf den Gebäudeteil gehoben und auf die Auflagefläche (16, 17) an die vorgegebene Position gelegt, und die elektrischen Verbindungen der Solarpanels (11) mit mindestens einem elektrischen Netz im oder am Gebäude hergestellt. Die Halte- und Stützsysteme mit den Solarpanels können am separaten Montageplatz sehr rationell und sogar automatisiert zusammengebaut werden.

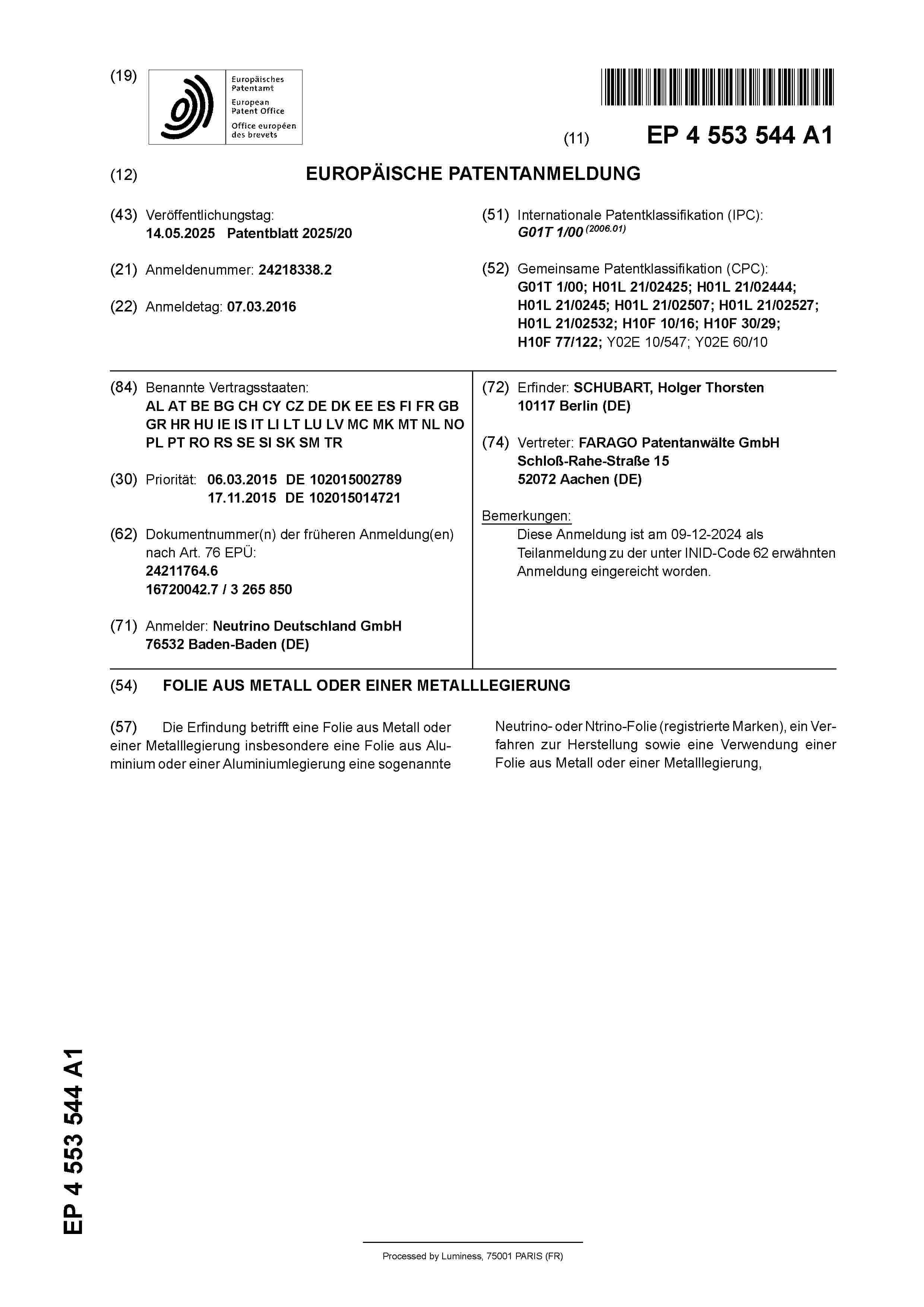

Resumen de: EP4553544A1
Die Erfindung betrifft eine Folie aus Metall oder einer Metalllegierung insbesondere eine Folie aus Aluminium oder einer Aluminiumlegierung eine sogenannte Neutrino- oder Ntrino-Folie (registrierte Marken), ein Verfahren zur Herstellung sowie eine Verwendung einer Folie aus Metall oder einer Metalllegierung,
Resumen de: EP4553376A2
A multi-color LED illumination device and specifically a lens comprising a cylindrical opening extending into the lens from a light entry region at which LED(s) are configured. A surface extends across the lens' light exit region, and a TIR outer surface extends between the light entry and exit regions. There are diffusion surfaces on the cylindrical opening's sidewall and upper surfaces and, if glare control isn't needed, the light exit region. Lunes can be configured on the cylindrical opening's sidewall surfaces, and on the TIR outer surface. As another example, diffusion elements are manufactured and possibly increased on only select surfaces but not on the light exit region. Three light interactions in a first portion of light and two interactions in a second portion of light can improve color mixing and beam control. Those interactions include two refractions either with an intermediate reflection or not.
Resumen de: EP4553405A1
A mounting system is described for mounting on a roof surface for roofing felt or membrane-covered roofs (1) and of the type that includes at least one rail (5,5') for use in mounting an outboard (31) on the roof surface. Each rail comprises a bottom wall (9), a top wall (10) and two opposing side walls (11) which form a rectangular profile. The underside (12) of the bottom wall (9) will face the roof surface in use, and the upper side (13) of the top wall (10) is equipped with anchoring devices (14,15,34,40). These are designed depending on the intended equipment to be installed. Along the length of the rail (5,5'), at least one first slot (16) is formed in pairs in each of the two side walls (11) with a position facing each other, as seen perpendicular to the longitudinal direction of the mounting rail (5,5'). The first slots (16) are delimited by opposite side edges (19) and opposite end edges (20), and the first slots (16) have a length which extends in the longitudinal direction of the rail (5,5). The slots (16) are placed with a side edge (19) at the upper side (28) of the bottom wall (9) and are designed so that strips (17) of roofing felt or membrane can pass through the slots (16) and be attached to the roofing felt or membrane-covered roof surface on each side of the rail (5.5').
Resumen de: EP4553906A1
Provided are a solar cell, a method for manufacturing a solar cell, and a photovoltaic module. A plurality of first pad groups and at least one second pad group are arranged along a first direction on a back surface of the solar cell. The second pad group is distributed in a region of the solar cell adjacent to a cut edge or a non-cut edge of the solar cell. The first pad groups are distributed in a region of the solar cell away from the cut edge or the non-cut edge. Along the first direction, a distance between a pad in the second pad group and a pad in the first pad group adjacent to the pad in the second pad group is greater than a distance between adjacent pads in adjacent first pad groups.
Resumen de: WO2024009003A1
The invention relates to a system for producing electricity with solar panels (30), which system comprises solar panel systems (10) arranged in a grid formation, wherein each solar panel system (10) comprises a solar cell assembly (20) consisting of solar panels (30) that is configured to be movable on a support structure (50) with respect to two axes, so that a connection of each solar cell assembly (20) comprises rotation means (60) and tilting means (70), wherein in the system a width (W) of the solar cell assembly (20) of each solar panel system (10) is 3-6 times, preferably 3.5-5 times, a height (H) of the solar cell assembly (20). The system comprises control means by means of which, at a selected moment in time, when an incoming angle of the sun's rays (K1) is greater than a selected minimum value, preferably greater than 1°, but less than a selected limit value, preferably less than 20°, more preferably less than 10°, most preferably less than 5°, the solar cell assemblies (20) are configured to be - rotated by the rotation means (60) so that an angle of rotation (K4) of the solar cell assemblies (20) relative to the direction of incoming sunlight is 20°-50°, preferably 30°-45°, and - tilted by the tilting means (70) in order to reduce a three-dimensional solar incidence angle of the solar cell assemblies (20) in such a manner that the solar cell assemblies (20) do not overshadow one another, by means of which rotation and tilting of the solar cell assemblies

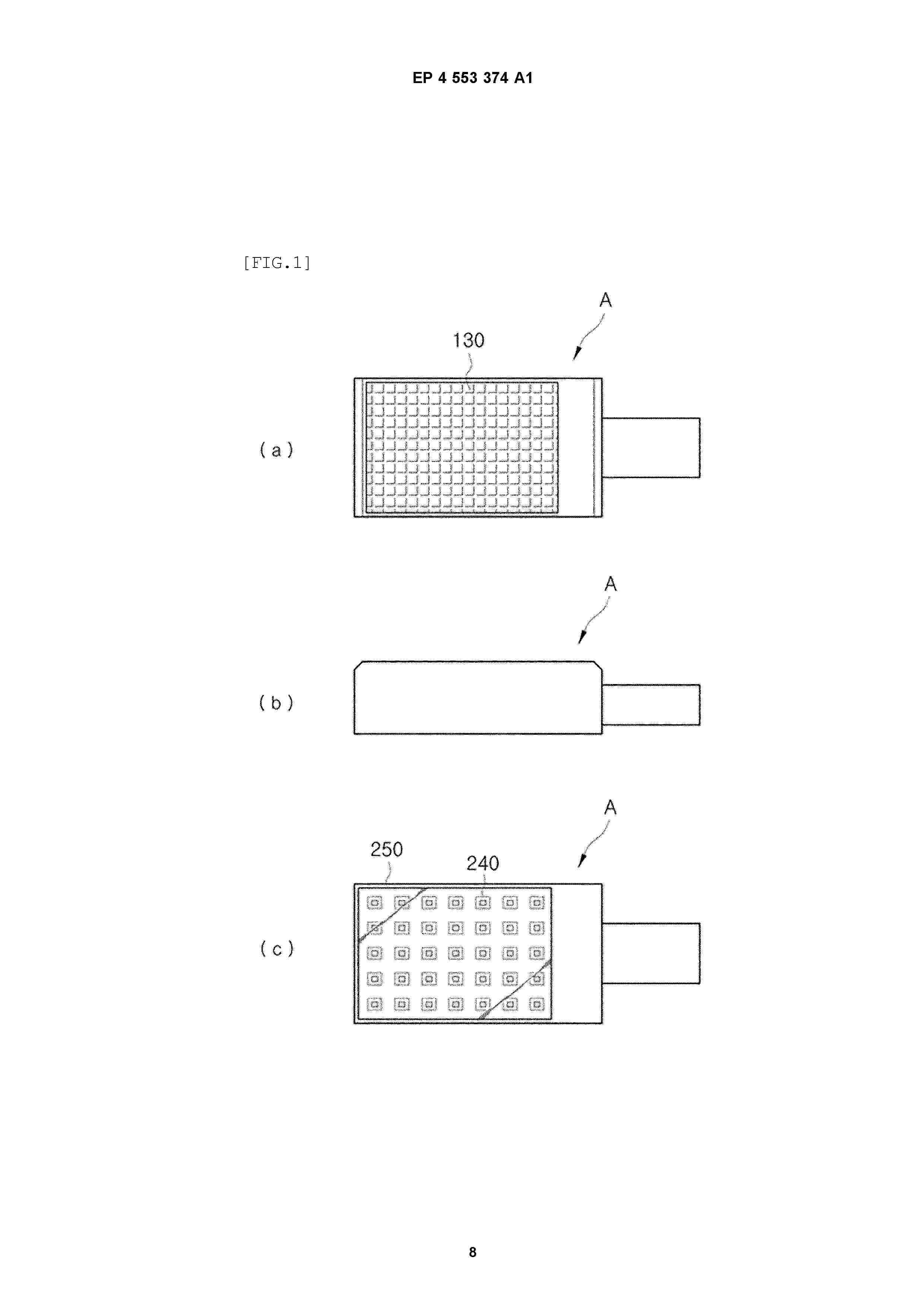

Resumen de: EP4553374A1
Proposed is a lighting device using combined power generation. Particularly, in order to maximize an energy saving effect by generating electricity not only during the day but also at night by using power generation through solar heat and heat generated from an LED, the lighting device using combined power generation includes a first power generation part including a first thermoelectric element whose first surface has a high temperature part formed by solar heat, the first power generation part being configured to generate electrical energy by using the first thermoelectric element, a second power generation part including a second thermoelectric element whose first surface has a high temperature part formed by heat generated from an LED module, the second power generation part being configured to generate electrical energy by using the second thermoelectric element, and a cooling part which is provided between the first power generation part and the second power generation part and simultaneously cools a second surface of each of the first thermoelectric element and the second thermoelectric element.
Resumen de: WO2024011154A1
A mounting assembly for use in mid-grab and/or edge-grab applications may include a clamp secured to a stanchion by a clamp fastener. The mounting assembly may also include a mounting plate and a base plate that may be secured to a mounting device by the stanchion. The mounting assembly may be used, for example, to secure photovoltaic modules (or other devices or structures) of varying heights to a roof or other building surface and to provide increased lift-off resistance.
Resumen de: FR3155112A1
ENSEMBLE POUR PANNEAU PHOTOVOLTAÏQUE L’invention concerne un ensemble (100) pour panneau photovoltaïque (102) comportant un réceptacle (104) recevant le panneau photovoltaïque (102) et présentant un fond (104a), un couvercle (106) comportant un cadre (106a) arrangé au-dessus du panneau photovoltaïque (102), et au moins un système de fixation qui assure la fixation du couvercle (106) au réceptacle (104), où le fond (104a) est percé d’au moins une fenêtre (121), où pour chaque fenêtre (121), une languette (120) est arrangée dans la fenêtre (121) et présente deux premiers bords solidaires du fond (104a), et où la ou chaque languette (120) est équipée, sur la face opposée au cadre (106a), d’un moyen de fixation à clip (124) destiné à coopérer avec un support (50) et sur la face du côté du cadre (106a), d’une excroissance (126) en saillie au-dessus du fond (104a). Fig. 3
Resumen de: FR3155111A1
ENSEMBLE POUR PANNEAU PHOTOVOLTAÏQUE L’invention concerne un ensemble (100) pour panneau photovoltaïque (102) comportant un réceptacle (104) recevant le panneau photovoltaïque (102) et une paroi longitudinale intérieure (104b) parallèle à une direction longitudinale (X), un couvercle (106) comportant un cadre (106a) disposé au-dessus du panneau photovoltaïque (102) et une paroi longitudinale extérieure (106b) en regard de la paroi longitudinale intérieure (104b), et au moins un système de fixation qui assure une fixation amovible desdites parois entre elles, où chaque système de fixation comporte un ergot (150) solidaire de la paroi longitudinale intérieure (104b) et présentant parallèlement à la direction longitudinale (X), une première longueur (L0), et un contre-ergot (152) solidaire de la paroi longitudinale extérieure (106b), où de part et d’autre dudit contre-ergot (152) est arrangé un évidement (108a-b) présentant parallèlement à la direction longitudinale (X), une deuxième longueur (L1) supérieure à la première longueur (L0). Fig. 2
Resumen de: FR3154977A1
La présente divulgation est relative à un ensemble modulaire flottant (1) comprenant au moins deux dispositifs flottants (D1, D2, D3) et un système de raccord; configuré pour lier mécaniquement lesdits au moins deux dispositifs flottant, ledit système de raccord comprenant - un premier élément de couplage (E1), solidaire et saillant latéralement d’un premier dispositif flottant (D1)- un deuxième élément de couplage (E2), solidaire saillant latéralement du deuxième dispositif flottant (D2)- un système de verrouillage, amovible, configuré pour lier le premier élément de couplage et le deuxième élément de couplage. Figure de l’abrégé : Figure 3

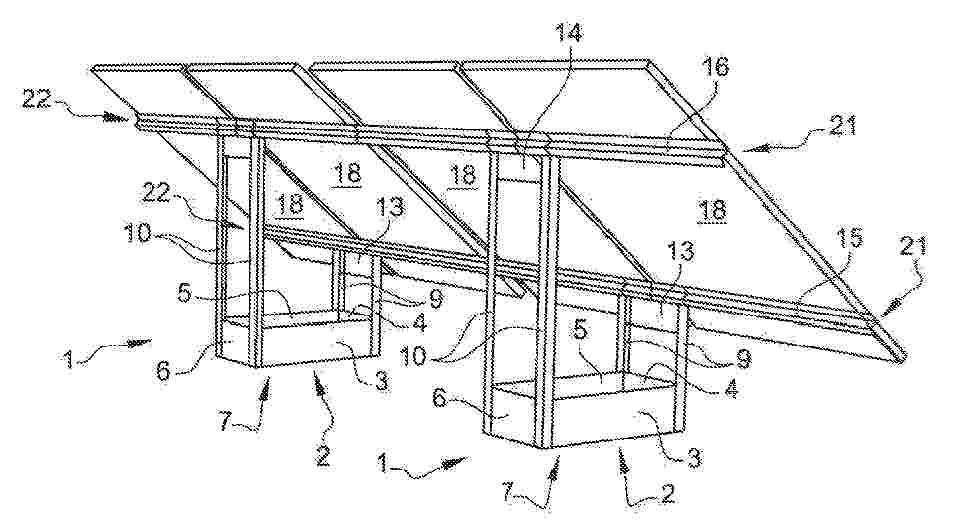

Resumen de: FR3155110A1
L’invention concerne un support au sol de panneaux photovoltaïques (18) comprenant au moins une armature de support (9, 10, 15, 16) d’au moins un panneau photovoltaïque (18), ladite armature étant inclinée et montée sur un socle (2) pliable. Le socle (2) comprend au moins quatre panneaux (3 à 6) reliés entre eux par une liaison amovible et définissant, en configuration reliée, un volume de réception d’un lestage dudit socle (2), lesdits panneaux (3 à 6) du socle (2 supportant en partie supérieure et à des altitudes différentes (9, 10), au moins deux rails (15, 16) parallèles de fixation d’au moins un panneau photovoltaïque (18), lesdits rails(15, 16) étant constitutifs de l’armature de support d’au moins un panneau photovoltaïque (18) et en ce que les rails (15, 16) ont des extrémités (21, 22) de formes complémentaires. L’invention concerne également un kit incluant tous les éléments nécessaires au montage du support. Figure à publier avec l’abrégé : Fig. 1
Resumen de: FR3155113A1
L’invention concerne un panneau solaire hybride destiné à la génération simultanée d'électricité et de chaleur, comprenant :- au moins un module photovoltaïque comportant une face avant destinée à recevoir le rayonnement solaire et une face arrière opposée à ladite face avant,- un échangeur thermique adjacent à la face arrière du module photovoltaïque pour la circulation d’un fluide caloporteur, - un collecteur d’entrée et un collecteur de sortie du fluide caloporteur en communication fluidique avec l’échangeur, - au moins un boîtier de jonction électrique associé au module photovoltaïque,et dans lequel :- le boîtier de jonction est disposé entre le module photovoltaïque et l’échangeur, contre la face arrière dudit module,- l’échangeur thermique comporte au moins un profilé pourvu de canaux internes pour la circulation du fluide caloporteur, lesquels canaux débouchent au niveau d’extrémités terminales dudit profilé,- le profilé est conformé de manière à inclure au moins une partie proéminente passant au-dessus du boîtier de jonction, les parties dudit profilé adjacentes à ladite partie proéminente étant planes et en contact avec la face arrière du module photovoltaïque.
Resumen de: FR3155092A1
L’invention porte sur un ensemble comprenant : au moins une cellule photovoltaïque comprenant une face sur laquelle est ménagée une grille de collecte, au moins un ruban d’interconnexion fixé sur ladite face, et destiné à raccorder électriquement et mécaniquement la cellule photovoltaïque à une autre cellule photovoltaïque, et au moins une ligne de colle (30), réalisée en un matériau électriquement conducteur, disposée entre la grille de collecte et le ruban d’interconnexion, la ligne de colle (30) étant adaptée pour raccorder mécaniquement et électriquement le ruban d’interconnexion à la cellule photovoltaïque, la ligne de colle (30) s’étendant sensiblement selon un axe longitudinal principal (X) et présentant une largeur (l) sensiblement constante. La ligne de colle (30) est disposée selon un motif en zigzag formé d’une pluralité de segments (31) formant chacun un angle (α) inférieur ou égal à 30° avec l’axe longitudinal principal (X). Figure pour l’abrégé : Fig. 2
Resumen de: FR3154901A1
La présente invention concerne une installation agrivoltaïque, comportant : une structure porteuse comportant une pluralité de piliers (5, 6 ; 7, 8)un cadre supérieur muni de panneaux photovoltaïques (10) alternant avec des zones transparentes (20), maintenus à distance du sol par ladite structure porteuse Caractérisée en ce qu’elle comporte en outre un filet entourant ladite structure porteuse avec des pans périphériques (1, 3) et une partie supérieure (3) s’étendant sous une partie au moins dudit cadre supérieur. Figure de l’abrégé : Figure 1
Resumen de: US2025150029A1
An assembly used to hang cable on a solar panel frame is disclosed. The assembly includes a wire hanger and a universal mount. The wire hanger has a first end with a hook, a main member, and a second end with a hook. The universal mount supports the wire hanger. The universal mount includes a first side that engages a mounting hole in the solar panel frame to connect the universal mount to the solar panel frame. The universal mount includes a second side that receives the wire hanger enabling the wire hanger and cable positioned therein to hang from the solar panel frame.
Resumen de: US2025150026A1
Systems and methods for applying flexible solar panels to flexible underlying membranes are disclosed. The embodiments disclosed herein involve systems and methods for applying flexible photovoltaic modules to flexible underlying membranes, including large and small span and permanent membrane structures.
Resumen de: US2025149900A1
Various enhancements to grid-interactive inverters in accordance with embodiments of the invention are disclosed. One embodiment includes input terminals configured to receive a direct current, output terminals configured to provide an alternating output current to the utility grid, a controller, an output current sensor, and a DC-AC inverter stage comprising a plurality of switches controlled by control signals generated by the controller. In addition, the controller is configured to: generate control signals that cause the switches in the DC-AC inverter stage to switch a direct current in a bidirectional manner; measure the alternating output current; perform frequency decomposition of the output current; and generate control signals that cause the switches in the DC-AC inverter stage to switch current in a way that the magnitude of a plurality of unwanted current components is subtracted from the resulting output current.
Resumen de: US2025149818A1
A photovoltaic connector includes a socket, and plugs configured to be inserted into the socket, wherein each plug is provided with at least one photovoltaic cable configured to be electrically connected to the socket; the socket is configured to be connected to at least two plugs in an inserted manner; and/or, the number of the photovoltaic cables of at least one plug is at least two. In the photovoltaic connector, if the socket is configured to be connected to at least two plugs in an inserted manner, the area on the box that is occupied by the socket is reduced, thereby reducing the overall size of the box. If the number of the photovoltaic cables of at least one plug is at least two, the area on the box that is occupied by the photovoltaic connector is reduced, thereby reducing the overall size of the box.
Resumen de: US2025149899A1
Various embodiments of the teachings herein include a method for classifying decentralized energy resources within a power grid for control of the power grid. An example includes: determining an affiliation of a respective decentralized energy resource to one of a plurality of classes using an artificial neural network; and carrying out the affiliation by determining an affiliation of the respective energy resource to one of the classes. The artificial neural network is trained to use a load series as input data and determine the assignment of the respective load series to one of the plurality of classes as output data. Multiple specified classes are associated with a technical type of the respective decentralized energy resource. Each of the energy resources is provided with a load series associated with the respective energy resource.
Resumen de: AU2025202834A1
Photovoltaic devices such as solar cells, hybrid solar cell-batteries, and other such devices may include an active layer disposed between two electrodes, the active layer having perovskite material and other material such as mesoporous material, interfacial layers, thin-coat interfacial layers, and combinations thereof. The perovskite material may be photoactive. The perovskite material may be disposed between two or more other materials in the photovoltaic device. Inclusion of these materials in various arrangements within an active layer of a photovoltaic device may improve device performance. Other materials may be included to further improve device performance, such as, for example: additional perovskites, and additional interfacial layers.
Resumen de: AU2025202823A1
A method for preparing photoactive perovskite materials. The method comprises the steps of: introducing a lead halide and a first solvent to a first vessel and contacting the lead halide with the first solvent to dissolve the lead halide to form a lead halide solution, introducing a Group 1 metal halide a second solvent into a second vessel and contacting the Group 1 metal halide with the second solvent to dissolve the Group 1 metal halide to form a Group 1 metal halide solution, and contacting the lead halide solution with the Group 1 metal halide solution to form a thin-film precursor ink. The method further comprises depositing the thin-film precursor ink onto a substrate, drying the thin-film precursor ink to form a thin film, annealing the thin film; and rinsing the thin film with a salt solution.
Resumen de: AU2023356551A1
An embodiment provides a window unit corner spacer for spacing apart first and second window panels in a window unit. The corner spacer may comprise a corner spacer body having a recess that is dimensioned to receive a solar cell, and a first coupling portion and a second coupling portion each extending from the body. The corner space may also include a first electrical connector positioned in the recess for electrically connecting the solar cell that is received in the recess to one or more electrical components. The corner space may also include a spacer coupler coupled to or formed with the body. The spacer coupler may be configured to be received in and couple to one or more spacer portions that space apart the first and second window panels, wherein, in use, a primary seal that prevents transfer of a gaseous medium, such as air, if formed between at least the spacer coupler and the first and second window panels.
Resumen de: WO2025096447A1
Disclosed herein is a new and improved system and method for fabricating diamond films by first seeding a surface of a transparent substrate. A diamond layer that is at least one of nanocrystalline and ultrananocrystalline can be deposited upon the surface of the transparent substrate and both the diamond layer and the transparent substrate modified to incorporate substitutional atoms.
Resumen de: AU2025202759A1
A method for preparing photoactive perovskite materials. The method comprises the step of preparing a lead halide precursor ink. Preparing a lead halide precursor ink comprises the steps of: introducing a lead halide into a vessel, introducing a first solvent to the vessel, and contacting the lead halide with the first solvent to dissolve the lead halide. The method further comprises depositing the lead halide precursor ink onto a substrate, drying the lead halide precursor ink to form a thin film, annealing the thin film, and rinsing the thin film with a second solvent and a salt.
Resumen de: US2025149901A1
Systems and methods to balance currents among a plurality of photovoltaic units connected in series. In aspect, a management unit is coupled between a photovoltaic energy production unit and a string of energy production units. The management unit has an energy storage element (e.g., a capacitor) connected to the photovoltaic energy production unit. The management unit further has a switch to selectively couple to the energy storage element and the photovoltaic energy production unit to the string. The management unit allows the current in the string to be larger than the current in the photovoltaic energy production unit.
Resumen de: US2025149965A1
A power control device for controlling a power converter configured to convert an input power to output includes: a setting unit configured to set a control mode of the power converter to either one of a constant voltage control, a constant current control, a constant power control, and an output stop according to an input value, and set a target value of output of the power converter corresponding to the control mode based on the control mode and a reference function defined according to an input value; and an output unit configured to output the control mode set by the setting unit and the target value set by the setting unit to the power converter.
Resumen de: US2025149890A1
A first energy converter that can consume a first physical energy form of a first energy delivery network can be controlled to produce a second physical energy form of a second energy delivery network and inject the second physical energy form into the second energy delivery network. A second energy converter that can consume the second physical energy form of the second energy delivery system can be controlled to produce the first physical energy form of the first energy delivery network and inject the first physical energy form into the first energy deliver network. The controlling of the first energy converter and the controlling of the second energy converter can be coordinated. Related apparatus, systems, techniques and articles are also described.
Resumen de: WO2025092891A1
The present application relates to an energy control method and apparatus, a computer device, a storage medium, and a computer program product. The method comprises: acquiring photovoltaic supply power, battery capacity, and micro-inverter set power, wherein the micro-inverter set power is used to indicate power provided by a micro-inverter to a load; and on the basis of the photovoltaic supply power, the battery capacity, and the micro-inverter set power, determining power consumption parameters of a battery, wherein the power consumption parameters comprise charging power and discharging power. According to the method, by means of controlling the charging and discharging power of the battery, solar energy converted by a photovoltaic panel can be matched with energy required by the load, thereby improving energy utilization and battery performance.
Resumen de: WO2025092888A1
The present application relates to a grid-connected photovoltaic system and an operation method therefor. A switch changeover apparatus is provided between a photovoltaic panel and a direct-current converter, wherein an input end of the switch changeover apparatus is connected to the photovoltaic panel, and a first output end and a second output end of the switch changeover apparatus are connected to a micro-inverter and the direct-current converter, respectively; and the switch changeover apparatus is further connected to a processor. When the grid-connected photovoltaic system has the requirement for replacing an energy storage battery, it is only necessary to control, by means of the processor, the switch changeover apparatus to act to connect the photovoltaic panel to the micro-inverter, such that continuous grid-connected operation can be ensured; and after the replacement of the energy storage battery is completed, it is also only necessary to control, by means of the processor, the switch changeover apparatus to act and perform changeover to connect the direct-current converter to the photovoltaic panel. During replacement of the energy storage battery, a user does not need to manually remove or install a circuit, and the whole changeover process is implemented by means of the actions of the processor and the switch changeover apparatus, thereby effectively solving the problems of a rewiring operation of the photovoltaic panel being cumbersome and consuming time and la
Resumen de: WO2025092180A1
A battery cell, a solar cell, and a photovoltaic module. The front surface of the battery cell is provided with a plurality of front surface connecting stations distributed at intervals in a first direction, each front surface connecting station is provided with a plurality of first connecting parts distributed at intervals in a second direction, the back surface of the battery cell is provided with a plurality of back surface connecting stations distributed at intervals in the first direction, each back surface connecting station is provided with a plurality of second connecting parts distributed at intervals in the second direction, the plurality of first connecting parts of every two adjacent front surface connecting stations are distributed in a staggered manner, and/or the plurality of second connecting parts of every two adjacent back surface connecting stations are distributed in a staggered manner. The battery can reduce the reliability failure risk of the photovoltaic module.
Resumen de: DE102023130403A1
Photovoltaik-Anlage (1) mit einer Tragkonstruktion mit einer Vielzahl von in einem Untergrund (3) verankerbaren Pfosten (2) und mindestens einem bifazialen Photovoltaikmodul (4) zwischen zwei benachbarten Pfosten (2), wobei das mindestens eine bifaziale Photovoltaikmodul (4) an vier Ecken an jeweils einem Halteelement (5) gehalten ist und jedes Halteelement (5) an einem der Pfosten (2) fixiert ist. Ferner betrifft die Erfindung ein Verfahren zur Montage einer Photovoltaik-Anlage (1), die mit geringem Materialeinsatz aufgestellt werden kann und leicht zu montieren ist.
Resumen de: WO2025091790A1
A photovoltaic module backsheet, comprising: a metal layer, which comprises a first surface and a second surface arranged opposite each other in the direction of thickness thereof; and an insulating enclosure layer, which comprises a first insulating cover layer arranged on the first surface of the metal layer and a second insulating cover layer arranged on the second surface of the metal layer, wherein the edges of the first insulating cover layer and the second insulating cover layer both protrude beyond the edge of the metal layer, and the portions of the first insulating cover layer and the second insulating cover layer that protrude beyond the edge of the metal layer are connected together, thus enclosing the metal layer between the first insulating cover layer and the second insulating cover layer, each of the first insulating cover layer and the second insulating cover layer comprising at least one first insulating layer.
Resumen de: WO2025091198A1
A photovoltaic module and a manufacturing method therefor. The photovoltaic module comprises a front plate, a cell layer, and a back plate, wherein the cell layer is located between the front plate and the back plate; encapsulant film layers are provided between the cell layer and the back plate and between the cell layer and the front plate; the area of the cell layer is smaller than the area of the front plate and/or the back plate, so that the front plate and/or the back plate have a sealing edge extending beyond the peripheral edges of the cell layer; and a plurality of protrusions are provided on the inner surface of the sealing edge. The photovoltaic module further comprises a sealant strip arranged around the cell layer, wherein the sealant strip is laminated between the front plate and the back plate, at least one of the upper surface and the lower surface of the sealant strip is in contact-fit with the protrusions, and a portion of the sealant strip is pressed into the region to be filled between the protrusions. The photovoltaic module has improved interface water blocking capacity, thereby improving the water vapor resistance of the photovoltaic module.
Resumen de: WO2025092659A1
The present application relates to the technical field of photovoltaics, and discloses a photovoltaic module, so as to solve the problems of significant visual differences and poor aesthetics of photovoltaic modules. The photovoltaic module comprises a cover plate, cells, and a packaging plate which are sequentially stacked from top to bottom. A passivation layer is provided on the surface of each cell on the side facing the cover plate. The refractive index of the passivation layer is greater than or equal to 1.9 and less than or equal to 2.3. The thickness of the passivation layer is greater than or equal to 50 nm and less than or equal to 100 nm. The cover plate is provided with an anti-reflection layer, and the anti-reflection layer is located on the side of the cover plate away from the cells. The thickness of the anti-reflection layer is greater than or equal to 100 nm and less than or equal to 230 nm. The refractive index of the anti-reflection layer is greater than or equal to 1.1 and less than or equal to 1.4.
Resumen de: WO2025092330A1
The present disclosure provides a perovskite cell and a preparation method therefor, and a photovoltaic module. The perovskite cell comprises a substrate, and a perovskite layer (3) and an electron transport layer which are sequentially arranged on the substrate, wherein the electron transport layer comprises a C60 layer, and the C60 layer is arranged close to the perovskite layer, wherein the perovskite layer (3) comprises a perovskite material and 1,3-diaminopropane dihydroiodide, and/or the perovskite cell further comprises a passivation layer (4) arranged between the perovskite layer and the C60 layer, and the passivation layer (4) comprises 1,3-diaminopropane dihydroiodide.
Resumen de: DE102023130837A1
Die Erfindung geht aus von einer Solarmodulbefestigungsvorrichtung mit einer Montageschiene (34, 36, 38, 40) zur Befestigung mehrerer Solarmodule(12, 14, 16, 18), wobei die Montageschiene (34, 36, 38, 40) zumindest eine zumindest im Wesentlichen durchgängige Auflagefläche (44, 46) aufweist, auf die die Solarmodule (12, 14, 16, 18) zur Befestigung aufschiebbar sind.Es wird vorgeschlagen, dass die Montageschiene (34, 36, 38, 40) zumindest ein Montagesicherungselement (66, 68) aufweist, das dazu vorgesehen ist, ein Aufschieben von Solarmodulen (12, 14, 16, 18) auf die Auflagefläche (44, 46) in einer Montagerichtung (204) zuzulassen und die Solarmodule (12, 14, 16, 18) in Montagepositionen gegen ein Verschieben entgegen der Montagerichtung (204) zu sichern.
Resumen de: WO2025092041A1
A connector (11), comprising: a connection body (300); a first connecting assembly (100), which comprises a first connecting line (110) and a first plug-in member (120), the first connecting line (110) being connected to the connection body (300) and located on one side of the connection body (300), and the first plug-in member (120) being connected to one end of the first connecting line (110) away from the connection body (300); and a second connecting assembly (200), which comprises a second plug-in member (220), the second plug-in member (220) being located on the other side of the connection body (300), and one of the first plug-in member (120) and the second plug-in member (220) being a male plug and the other being a female socket adapted to the male plug.
Resumen de: WO2025091805A1
The present application relates to a pressing block and a photovoltaic device. The pressing block (100) is used for assembling a first battery module (200) to a second battery module (300), and comprises a body (110), first fitting members (120), and second fitting members (130); the first fitting members (120) are arranged on the body (110), and the first fitting members (120) are fitted to the first battery module (200); the second fitting members (130) and the first fitting members (120) are arranged at two ends of the body (110) in a first direction in a one-to-one correspondence manner, and the second fitting members (130) extend out of the side of the body (110) facing away from the first fitting members (120); the first direction is the arrangement direction of the first battery module (200) and the second battery module (300); when the second battery module (300) gets close to the pressing block (100) in the first direction, the second fitting members (130) can elastically deform in a second direction, so that the body (110) is fitted to the second battery module (300); and the second direction is the thickness direction of the pressing block (100).
Resumen de: WO2025091780A1
The present application relates to a photovoltaic bypass device, a photovoltaic module junction box, and a photovoltaic module. The photovoltaic bypass device comprises: a first conductive block (102) provided with a first welding area (202); a second conductive block (104) spaced apart from the first conductive block (102) and provided with a second welding area (204); a third conductive block (106) spaced apart from both the first conductive block (102) and the second conductive block (104) and provided with a third welding area (206); a first bypass element (108), a terminal of the first bypass element (108) that has a first polarity being electrically connected to the first conductive block (102), a terminal of the first bypass element (108) that has a second polarity being electrically connected to the third conductive block (106), the second polarity being opposite to the first polarity; and a second bypass element (110), a terminal of the second bypass element (110) that has the second polarity being electrically connected to the second conductive block (104), and a terminal of the second bypass element (110) that has the first polarity being electrically connected to the third conductive block (106).
Resumen de: WO2025093841A1
The present disclosure relates to a floating modular assembly (1) comprising at least two floating devices (D1, D2, D3) and a connecting system, configured to mechanically connect the at least two floating devices, the connecting system comprising - a first coupling element (E1), rigidly attached to and projecting laterally from a first floating device (D1) - a second coupling element (E2), rigidly attached to and projecting laterally from the second floating device (D2) - a removable locking system, configured to connect the first coupling element to the second coupling element.
Resumen de: WO2025097037A1
A roof mount (700) includes a base assembly installable on a roof including a foot (703), an arm (705), and a slider (707). A flashing (780) is positioned between the foot (703) and the arm (705) and an adjustment assembly (704) is coupled to the slider (707). The adjustment assembly (704) includes a partially threaded shaft (706), an adjustment nut (708), and a support nut (710). A clamp (712) is adjustably connected to the base assembly by the adjustment assembly (704) and a distance between the clamp (712) and the slider (707) is adjustable. The clamp (712) includes a first clamp portion (714) and a second clamp portion (726). The first clamp portion (714) includes a central portion (716), a first support surface (718), and a second support surface (720). The central portion (716) is disposed between the first support surface (718) and the second support surface (720). A first fastener (728) is connected to the clamp (712) and operable to tighten the second clamp portion (726) to the first clamp portion (714). A roof mount system includes a roof mount (700) and at least one skirt (400).
Resumen de: WO2025091743A1
A solar panel assembly (10) and a railing assembly (50). The solar panel assembly (10) comprises: a solar panel (100), the solar panel (100) being provided with at least one connecting hole group (110), and each connecting hole group (110) comprising a plurality of connecting holes (112) arranged at intervals; and at least one connecting structure (200), each connecting structure (200) matching one connecting hole group (110), each connecting structure (200) comprising a pull rope (210), the pull rope (210) successively passing through the plurality of connecting holes (112) of the connecting hole group (110), and the portion of the pull rope (210) passing through the plurality of connecting holes (112) comprising a first tensioning section (212) and a second tensioning section (214), the first tensioning section (212) being located on a first side of the solar panel (100), the second tensioning section (214) being located on a second side of the solar panel (100), and the first side of the solar panel (100) and the second side of the solar panel (100) being arranged opposite to each other.
Resumen de: WO2025095234A1
A portable counting device using a tripod and a solar cell comprises: a tripod unit; a camera module disposed on the tripod unit and for photographing an image of a preset region of interest; a driving unit for counting the number of objects located in the region of interest by analyzing the image photographed by the camera module; a wireless communication module for sending information on the counted number of the objects to a server; and a power supply unit for supplying power required to drive the camera module, the driving unit, and the wireless communication module, the device thus being capable of easily counting the number of objects in the region of interest even in an environment in which power is not provided.
Resumen de: WO2025095235A1
This counting system comprising a portable counting device using artificial intelligence may comprise: at least one counter for extracting information on the number of preset objects, corresponding to a preset region of interest, in a counting mode; a server for receiving the information on the number of objects from the at least one counter; and a host terminal corresponding to a host user.
Resumen de: WO2025095351A1
Provided is an electronic device comprising: a memory; and a processor operatively connected to the memory, wherein the processor is configured to: receive multiple pieces of weather forecast data; acquire multiple pieces of characteristic data on the basis of the multiple pieces of weather forecast data; acquire integrated characteristic data obtained by integrating the multiple pieces of characteristic data on the basis of similarity between the multiple pieces of characteristic data; and generate a prediction value of solar power generation on the basis of the integrated characteristic data.
Resumen de: WO2025094603A1
The present invention addresses the problem of providing a method for manufacturing a high-productivity solar cell with which high performance is achieved in a solar cell. The aforementioned problem can be solved by a method for manufacturing a solar cell, the method comprising: a precursor formation step for forming a precursor having an InGaSe layer, a CuSe layer, and an InSe layer; and a crystallization step for heating the precursor to obtain a crystallized light absorption layer.
Resumen de: WO2025096457A1
An on-site photovoltaic (PV) module assembly system and process may involve customizing assembly of a row of PV modules at the location of a particular solar site. Mounting rails or other mounting structures configured to interface a PV module with a torque tube may be positioned along the torque tube on site to account for physical characteristics and properties of the particular solar site. PV modules may be attached to one or more of the mounting rails by an adhesive. Using the adhesive to attach the PV modules to the mounting rails may increase the flexibility of PV module installation along the torque tube. Use of the adhesive may also decrease the number of fastening components included with the mounting rail and the PV module, such as a structural rail or module rails.
Resumen de: WO2025097102A1
Reflective fibers include prismatic fibers are configured to reflect solar radiation and may be incorporated into a textile or fabric and formed into garment or architectural textiles. A prismatic fiber may be a different material of polymer from a carrier material within the fiber or may be a void. A prismatic fiber or void has a triangular cross-sectional shape across the length of the fiber and may have one or more sides that are textured, corrugated or have a plurality of grooves to reflect light to increase the overall reflectance of light and solar radiation back in the atmosphere, away from the prismatic fiber. Light may enter the first side of the prismatic fiber and reflect off the base and out the second side of the prismatic fiber, wherein the texture or grooves act as a Fresnel lens. The fibers may be woven into a fabric, or laid down as a non-woven or configured on a substrate or support layer. A prismatic fiber may be made out of a polymeric material.
Resumen de: WO2025097074A1
Illustrative embodiments present a self-contained window system that includes a solar-generating glass window, pods that contain components, an energy storage device, and electrical circuits that distribute electrical power that is generated by the solar-generating glass and distributed to the components and the energy storage device. The self-contained window system is secured to a structure that may be a window frame, a glazing bead, or the like. In illustrative embodiments, the pods are secured inside of the structure, while in other illustrative embodiments the pods are secured on the outside of the structure. Regardless of whether the pods are secured inside or outside of structure, the components in the pods are accessible and easy to maintain. The pods and components can be conveniently exchanged and upgraded.
Resumen de: WO2025095811A1
The invention relates to the solar power industry. A linear cable system for cleaning solar panels comprises a control unit and a cleaning module. The control unit comprises a computer and a wireless communication module. The cleaning module, which is mounted on a row of solar panels, comprises a starting platform, a receiving platform, a cleaning device, and a cable system. The starting platform consists of a frame for an electric motor, a drive attachment frame, two driven pulleys, guide rails, and struts. The receiving platform consists of a drive attachment frame, two guide pulleys, guide rails, and struts. The guide rails are fastened to a crossbar, and the struts are fastened to support posts. The cable system contains a power shaft connected to the electric motor and to the guide pulleys, the guide pulleys being mounted on the ends of the receiving platform. Cables are threaded around the pulleys in such a way that between a cable and the surface of a solar panel there is a gap. The cables are tensioned by means of ratcheting mechanisms on a sheave assembly of a rotary drive of the cleaning device. The invention provides an increase in the reliability and service life of the equipment, an increase in cleaning power, and a broadening of the functional capabilities and scope of use of the system.
Resumen de: WO2025096812A1
In some implementations, a system includes a plurality of photovoltaic panels that are each configured to generate a DC voltage. The system includes a plurality of converter modules that each include a DC-DC converter. The converter modules are electrically coupled together to provide DC output in parallel to a DC bus. Each of the converter modules is configured to receive input of a DC voltage from at least one of the photovoltaic panels and is also configured to convert the received DC voltage to an output DC voltage. The system includes a DC-AC converter configured to receive DC power from the DC bus and provide an AC output.
Resumen de: US2025143258A1
Apparatuses, systems, and methods are provided for controlling one or more assemblies of an energy generation system. The method may include selecting at least a portion of the one or more assemblies, transmitting at least one control signal associated with the selected at least a portion of the one or more assemblies, receiving the control signal at a communication module of the one or more assemblies, and modifying an operational parameter of the one or more assemblies responsive to the received control signal to avoid contact between the one or more assemblies and obstacles. The operational parameter may be associated with a position of the at least a portion of the one or more assemblies relative to a ground surface. The operational parameter may additionally or alternatively be a range of angle of the at least a portion of the one or more assemblies.
Resumen de: US2025145466A1
Methods for stabilizing laser-induced graphene (LIG) through composite formation and compositions thereof. Using infiltration methods and/or lamination methods, LIG composites (LIGCs) with physical properties can be engineered on various substrate materials. The physical properties include surface properties, such as superhydrophobicity and antibiofouling; the LIGCs are also useful in antibacterial applications, Joule-heating applications, and as resistive memory device substrates. Further, methods for fabricating and using LIG for flexible and embeddable gas sensors.
Resumen de: US2025147545A1
A display device and a method of manufacturing the display device are provided. The method includes disposing a display panel, including side areas, a front display area, and a sub-region, on a carrier film including first, second, and third release portions; removing the first release portion to expose the side areas; disposing a cover window above the display panel; attaching the front display area to the cover window by pressing the second release portion toward the cover window, and attaching the side areas to the cover window by pressing the side areas exposed by removing the first release portion toward the cover window; removing the second release portion and the third release portion to expose the front display area and the sub-region; and bending the display panel to attach a bottom portion of the sub-region to a bottom portion of the front display area.
Resumen de: US2025147120A1
Systems and/or methods for mapping power device in a string of serially connected power devices are disclosed herein. A power source may apply a source voltage to a first end of the string. A power system controller coupled to the two ends of the string may send a first signal to the power devices in the string. The power devices in the string, responsive to receiving the first signal, may measure electrical characteristics of the power devices, where the measured electrical characteristics may indicate the parasitic leakage of the power devices. The power devices may send second signals to the power system controller to report the measured electrical characteristics. The power system controller may determine the mapping of the power devices in the string based on the second signals.
Resumen de: US2025147524A1
Disclosed herein is a technique of configuring flexible photovoltaic tracker systems with high damping and low angle stow positions. Under dynamic environmental loads implementing a high amount of damping (e.g., greater than 25% of critical damping, greater than 50% of critical damping) or a very high amount of damping (e.g., 100% or greater of critical damping, infinite damping) enables the flexible tracker system to prevent problematic aeroelastic behaviors while positioned in a low stow angle. The disclosed technique is further applied to a prototyping process during wind tunnel testing.
Resumen de: US2025147535A1
Controlling a power converter circuit for a direct current (DC) power source is disclosed. The power converter may be operative to convert input power received from the DC power source to an output power and to perform maximum power point tracking of the power source. The power converter is adapted to provide the output power to a load that also performs maximum power point tracking.
Resumen de: US2025146710A1
A tracking device for solar modules is disclosed. The tracking device comprises a pivoting unit, wherein the pivoting unit has a drive arch and a connected cross member that is pivotable about a pivot axis, wherein the drive arch has drive recesses and retaining recesses that are alternatingly disposed circumferentially, a post at which the cross member is pivotably mounted about a pivot axis, a transmission that is rotated about a rotational axis, wherein the transmission has a drive element that engages into one of the drive recesses and a holding member that engages into one of the retaining recesses, a shaft that is coupled with the transmission, and a drive unit that is attached to the post, wherein the drive unit has a motor-driven output member, wherein the output member, shaft, and transmission are coupled to one another at a joint axial coupling point in a torque-transmitting manner.
Resumen de: US2025146709A1
Prefabricated building units have been in existence for some time and are gaining popularity. However, existing prefabricated building units have exposed and/or disorganized water pipelines, electricity pipelines and/or other pipelines. They also lack outdoor independent energy supply and, thus, are not suitable in locations with no access to power grid.
Resumen de: US2025147615A1
The disclosure relates to an electronic device, including a flexible substrate, a driving structure layer, a display structure layer and a touch layer. The flexible substrate includes an area and a main area adjacent to the area. The driving structure layer is disposed on the flexible substrate. The driving structure layer includes an insulating structure, and the insulating structure includes a plurality of recesses. The display structure layer is disposed on the driving structure layer. The touch layer is disposed on the driving structure layer. A portion of the touch layer is disposed on the area of the flexible substrate. At least a part of the plurality of recesses is disposed on the area of the flexible substrate.
Resumen de: US2025146294A1
A mounting device or bracket for paneled building surfaces is disclosed. The mounting bracket includes an upper wall in the form of a flat surface for supporting various types of attachments. An elongated mounting slot extends through the upper wall, and the mounting bracket includes an elongated nut receptacle that is positioned below this elongated mounting slot. With an attachment being positioned on the upper wall, an attachment fastener may be directed through the attachment, then through the elongated mounting slot, and then may be threadably engaged with a nut that is positioned within and movable along the nut receptacle in its elongated dimension. The elongated configuration of the mounting slot and nut receptacle provides adjustability for the position of the attachment fastener relative to the mounting bracket, including after the mounting bracket has already been installed on the building surface.
Resumen de: US2025146281A1
An elongate composite beam 26 for securing or anchoring a solar array 10. The beam 26 comprising a hollow outer shell 28 formed from a C-section beam that has a closed end wall 30, a pair of side walls 32, and end wall sections 34, 36 that extend inwardly towards each other from ends of the side walls 32. Opposed ends of the end wall sections 34, 36 are spaced apart to define an elongate gap G. The closed end wall 30, the side walls 32 and the end wall sections 34, 36 define a shell interior. At least one of the end wall sections 34, 36 comprises an inwardly extending lip 38, 40 that extends in a direction towards the closed end wall 30 inwardly into the shell interior. The shell interior is substantially filled with a settable material 42 which engages about the inwardly extending lip 38, 40.
Resumen de: US2025146273A1
A pultrusion fiber reinforced polymer (PFRP) structural frame assembly comprises a plurality of PFRP vertical columns, comprising at least one PFRP I-beam vertical column or PFRP wide flange vertical column; a plurality of PFRP horizontal beams, comprising at least one PFRP I-beam horizontal beam or PFRP wide flange horizontal beam; and at least one PFRP clip angle bracket configured to connect the at least one PFRP I-beam vertical column or PFRP wide flange vertical column to the at least one PFRP I-beam horizontal beam or PFRP wide flange horizontal beam.
Resumen de: US2025148941A1
A novel display panel that is highly convenient, useful, or reliable is provided. The display panel includes a display region, a first support, and a second support, the display region includes a first region, a second region, and a third region, the first region and the second region each have a belt-like shape extending in one direction, and the third region is sandwiched between the first region and the second region. The first support overlaps with the first region and is less likely to be warped than the third region, and the second support overlaps with the second region and is less likely to be warped than the third region. The second support can pivot on an axis extending in the one direction with respect to the first support.
Resumen de: US2025148942A1
A semiconductor device that can be highly integrated is provided.The semiconductor device includes a semiconductor layer, a first insulating layer, a second insulating layer, a third insulating layer, and a first conductive layer. The third insulating layer is positioned over the semiconductor layer and includes a first opening over the semiconductor layer. The first conductive layer is positioned over the semiconductor layer, the first insulating layer is positioned between the first conductive layer and the semiconductor layer, and the second insulating layer is provided in a position that is in contact with a side surface of the first opening, the semiconductor layer, and the first insulating layer. The semiconductor layer includes a first portion overlapping with the first insulating layer, a pair of second portions between which the first portion is sandwiched and which overlap with the second insulating layer, and a pair of third portions between which the first portion and the pair of second portions are sandwiched and which overlap with neither the first insulating layer nor the second insulating layer. The first portion has a smaller width than the first opening and has a thinner shape of the semiconductor layer than the second portions, and the second portions have a thinner shape of the semiconductor layer than the third portions.
Resumen de: US2025149260A1
There is provided a method of producing a photovoltaic device comprising a photoactive region comprising a layer of perovskite material, wherein the layer of perovskite material is disposed on a surface that has a roughness average (Ra) or root mean square roughness (Rms) of greater than or equal to 50 nm. The method comprises using vapour deposition to deposit a substantially continuous and conformal solid layer comprising one or more initial precursor compounds of the perovskite material, and subsequently treating the solid layer with one or more further precursor compounds to form a substantially continuous and conformal solid layer of the perovskite material on the rough surface. There is also provided a photovoltaic device comprising a photoactive region comprising a layer of perovskite material disposed using the method.
Resumen de: US2025151417A1
A solar glass assembly configured to generate energy and including a framing assembly having a plurality of framing elements enclosing a cavity, an upper frame surface, and a lower frame surface opposing the upper frame surface, an upper transparent glass layer coupled to the upper frame surface, defining a plurality of enclosed lens apertures with a plurality of magnifying lenses disposed therein and a lower glass layer coupled to the framing assembly and opposing the upper transparent glass layer, and a plurality of honeycomb lattice structures each housed within the cavity, of an electrically and thermally conductive material, interposed between the upper transparent glass layer and the lower glass layer, electrically coupled to a diode, and housing a semiconductor material within a cavity therein, directly coupled thereto, and disposed underneath one of the plurality of magnifying lenses to focus incoming solar light to the semiconductor material.
Resumen de: US2025151416A1
Provided are a heterojunction solar cell film deposition apparatus, method and system, a solar cell, a module, and a power generation system. The heterojunction solar cell film deposition apparatus is configured for amorphous silicon-based film deposition, and comprises a loading chamber, a preheating chamber, intrinsic process chambers, doping process chambers and an unloading chamber that are linearly arranged in sequence, the chambers being isolated from each other by means of an isolating valve. At least two intrinsic process chambers are provided and are configured for deposition by means of an intrinsic layer silicon film process; and at least one doping process chamber is provided and is configured for deposition by means of an N-type silicon film or P-type silicon film process. The preheating chamber comprises a heating preheating chamber and a preheating buffer chamber that is configured for adjusting the gas and pressure atmosphere.
Resumen de: US2025151415A1
Provided are a heterojunction solar cell film deposition apparatus, method and system, a solar cell, a module, and a power generation system. The heterojunction solar cell film deposition apparatus is configured for amorphous silicon-based film deposition, and comprises a loading cavity, a preheating cavity, intrinsic process cavities, doping process cavities and an unloading cavity that are linearly arranged in sequence, the cavities being isolated from each other by means of an isolating valve. At least two intrinsic process cavities are provided and are configured for deposition by means of an intrinsic layer silicon film process; and at least one doping process cavity is provided and is configured for deposition by means of an N-type silicon film or P-type silicon film process. The preheating cavity comprises a heating preheating chamber and a preheating buffer chamber that is configured for adjusting the gas and pressure atmosphere.
Resumen de: US2025151414A1
Technology for converting electricity generated by photovoltaic cells to AC or DC output power is disclosed. In some examples of the disclosed technology, a zonal power inverter has a plurality of voltage converters, the outputs of the voltage converters being connected in series and being electrically isolated from one another except for their output terminals being connected in series. The power inverter can further comprise a DC/AC converter coupled to a positive output terminal of one of the voltage converters. In some examples, an isolated multi-junction photovoltaic cell includes a plurality of photosensitive semiconductor active layers, each of the active layers being electrically isolated from the other active layers, and formed from a respective material having a different band gap than the other active layers. In some examples, the multi-junction photovoltaic cell is coupled to the input of the zonal power inverter.
Resumen de: US2025151569A1
The display defects of a display device are reduced. The display quality of the display device is improved. The display device includes a display panel and a first conductive layer. The display panel includes a display element including a pair of electrodes. An electrode of the pair of electrodes which is closer to one surface of the display panel is supplied with a constant potential. A constant potential is supplied to the first conductive layer. The second conductive layer provided on the other surface of the display panel is in contact with the first conductive layer, whereby the second conductive layer is also supplied with the constant potential. The second conductive layer includes a portion not fixed to the first conductive layer.
Resumen de: US2025151605A1
A polymer comprises repeating units represented by formula (I): -M-R-Y- formula (I), wherein in the formula (I), M is selected from substituted or unsubstituted anilino, substituted or unsubstituted carbazolyl, substituted or unsubstituted acridinyl, substituted or unsubstituted phenothiazinyl or substituted or unsubstituted phenoxazinyl; R is selected from substituted or unsubstituted C1-C10 alkyl; and Y is selected from carboxyl or a salt thereof, a phosphoric acid group or a salt thereof, or a sulfonic acid group or a salt thereof.
Resumen de: US2025151595A1
An object is to provide a highly reliable display unit having a function of sensing light. The display unit includes a light-receiving device and a light-emitting device. The light-receiving device includes an active layer between a pair of electrodes. The light-emitting device includes a hole-injection layer, a light-emitting layer, and an electron-transport layer between a pair of electrodes. The light-receiving device and the light-emitting device share one of the electrodes, and may further share another common layer between the pair of electrodes. The hole-injection layer is in contact with an anode and contains a first compound and a second compound. The electron-transport property of the electron-transport layer is low; hence, the light-emitting layer is less likely to have excess electrons. Here, the first compound is the material having a property of accepting electrons from the second compound.
Resumen de: US2025151419A1
An assembly including at least one photovoltaic cell including a face on which a collecting grid is arranged, at least one interconnection strip attached to the face, and intended to electrically and mechanically connect the photovoltaic cell to another photovoltaic cell, and at least one line of adhesive, made of an electrically conductive material, disposed between the collecting grid and the interconnection strip, the line of adhesive being adapted to mechanically and electrically connect the interconnection strip to the photovoltaic cell, the line of adhesive extending substantially along a main longitudinal axis (X) and having a substantially constant width. The line of adhesive is disposed according to a zigzag pattern formed from a plurality of segments each forming an angle (α) less than or equal to 30° with the main longitudinal axis (X).
Resumen de: US2025151418A1
There is disclosed a double-sided photovoltaic (PV) panel comprising a central thermal layer; and at least two independent solar cell arrays attached on both sides of the central thermal layer, and each of the at least two independent solar cell arrays being covered by a protection layer; wherein the central thermal layer, the at least two independent solar cell arrays, and the glass protection layers are sandwiched together to form the double-sided PV panel. Also disclosed is a method of manufacturing the double-sided PV panel. The double-sided PV panel further comprises a central support structure and a surrounding frame, the surrounding frame comprising a plurality of connectors to enable water circulation through the cooling pipe, wherein the water circulation enabling cooling down of accumulated heat present on the double-sided PV panel during operation, and thereby eliminating formation of cracks or hotspots on the double-sided PV panel.
Resumen de: US2025151396A1
The invention relates to a display device including a substrate, a plurality of pixels, a first insulating layer, a first conductive layer and a second conductive layer. The plurality of pixels are disposed on the substrate and comprise an active layer. The first insulating layer is disposed on the substrate and comprises a plurality of first recesses. The first conductive layer is disposed on the first insulating layer. The second conductive layer is electrically connected to the first conductive layer through one of the plurality of first recess. The active layer is disposed on the first insulating layer.
Resumen de: US2025151501A1
There is disclosed a method of manufacturing a light emitting diode (LED) arrangement, the method comprising the steps of installing an LED on a circuit board; and covering the circuit board and other electronic components on the circuit board with a layer of silicon coating; wherein a top emitting area of the LED is kept exposed or uncovered for increasing efficiency of the LED arrangement. Also disclosed is a lighting system, comprising a plurality of light emitting diode (LED) strips in connection with a photo-voltaic (PV) panel, the LED strips comprising a plurality of LEDs and infra-red (IR) LEDs, wherein the plurality of LEDs and IR LEDs are installed on the LED strips at a ratio of 1:8, for mitigating shadow losses and for increasing efficiency of the lighting arrangement.
Resumen de: US2025151427A1
A highly functional photoelectric conversion element is provided. The photoelectric conversion element includes: a first photoelectric converter that detects light in a first wavelength range and photoelectrically converts the light; a second photoelectric converter that detects light in a second wavelength range and photoelectrically converts the light to obtain distance information of a subject; and an optical filter that is disposed between the first photoelectric converter and the second photoelectric converter, and allows the light in the second wavelength range to pass therethrough more easily than the light in the first wavelength range. The first photoelectric converter includes a stacked structure and an electric charge accumulation electrode. The stacked structure includes a first electrode, a first photoelectric conversion layer, and a second electrode that are stacked in order, and the electric charge accumulation electrode is disposed to be separated from the first electrode and be opposed to the first photoelectric conversion layer with an insulating layer interposed therebetween.
Resumen de: US2025151457A1
A solar cell is provided, including: a substrate; a passivation layer formed over a surface of the substrate; fingers penetrating the passivation layer to be electrically connected to the substrate and including first and second fingers alternatingly arranged; connection electrodes each in electrical contact with end portions of at least two adjacent first fingers on a same side and includes one of a sectional structure and a curved wave-like structure. The sectional structure includes at least a first connection section and a second connection section connected to each other, where the first connection section is connected to an end portion of a respective finger of the at least two adjacent first fingers, the first connection section and the respective finger has an included angle that is not equal to 180°, and the first connection section and the second connection section has an included angle that is not equal to 180°.
Resumen de: US2025151455A1
Apparatus, methods and systems of wireless power distribution are disclosed. Embodiments involve the redirection of collimated energy to a converter, which stores or converts the energy into a more suitable form of energy for at least one specific point-of-use that is coupled to the converter.
Resumen de: US2025151454A1
A cell assembly includes a silicon substrate; a first doped region and a second doped region, having opposite polarities. The first doped region is an N-type doped region; the first doped region includes a first doped layer, a passivation layer, and a second doped layer; the passivation layer of the first doped region is provided on the first doped layer of the first doped region; and a conductive channel is formed in the passivation layer of the first doped region.
Resumen de: US2025151452A1
The present disclosure relates to an internally series-connected perovskite solar cell module and a preparation method thereof. The perovskite solar cell module comprises a plurality of sub-cell packs arranged longitudinally. Each sub-cell pack includes a positive electrode tab, a negative electrode tab, and a plurality of cell units arranged horizontally. An internal structure of the positive electrode tab, the negative electrode tab, and the plurality of cell units includes a substrate, a front electrode layer, a light-absorbing layer, and a back electrode layer from bottom to top. The present disclosure allows the back electrode layer to function as a conductor connecting each of the plurality of sub-cell packs through an appropriate laser scribing process, which realizes the series connection effect of the perovskite solar cell module by replacing busbars, thereby greatly avoiding the problem of poor contact when using busbars for series connection.
Resumen de: US2025150033A1
Provided is a device for checking the insulation status of a photovoltaic module, the device including a photovoltaic module, a bridge circuit connected to the photovoltaic module and having two first resistors connected in series and two second resistors connected in series such that the two first resistors and the two second resistors are connected in parallel, a sensor unit detecting a PV voltage of the photovoltaic module and a bridge voltage between a first node as a contact of the two first resistors and a second node as a contact of the two second resistors, a relay connected between the first node or the second node and the ground, a controller closing or opening the relay, and an calculation unit calculating an insulation resistance between the photovoltaic module and the ground based on the PV voltage and the bridge voltage.
Resumen de: US2025150032A1
A method of signaling between a photovoltaic module and an inverter module. The inverter module is connected to the photovoltaic module. In an initial mode of operation an initial code is modulated thereby producing an initial signal. The initial signal is transmitted from the inverter module to the photovoltaic module. The initial signal is received by the photovoltaic module. The operating mode is then changed to a normal mode of power conversion, and during the normal mode of operation a control signal is transmitted from the inverter to the photovoltaic module. A control code is demodulated and received from the control signal. The control code is compared with the initial code producing a comparison. The control command of the control signal is validated as a valid control command from the inverter module with the control command only acted upon when the comparison is a positive comparison.
Resumen de: US2025150031A1
A method may include obtaining irradiance data at a first time and a second time from sensors, determining whether one or more solar modules of a plurality of networked power plants will be covered by a shadow or shade at a third time based on the irradiance data, and generating, based on the determination, a power output prediction for each power plant of the networked power plants at the third time. The method may further include receiving power delivery profiles for first and second loads, adjusting a power output of one or more power plants of the networked power plants based at least in part on the power output prediction and the power delivery profiles for the first and second loads, and allocating a combined power output of the power plants to the first and second loads based on first and second load reliability thresholds.
Resumen de: US2025150000A1
A power system may include a plurality of power sources and an inverter. The inverter may include a controller and a switch leg with one or more switches. The controller may control the inverter to convert direct current (DC) power generated by the plurality of power sources into alternating current (AC) power by variously controlling the switches of the switch leg during first and second time periods of a power cycle.
Resumen de: US2025150028A1
Provided is a photovoltaic apparatus. The photovoltaic apparatus includes: a substrate; a solar cell connected to the substrate; a first electrical connector connected to the substrate; a first lead wire provided with a second electrical connector at an end of the first lead wire, the second electrical connector being configured to be removably and electrically connected to the first electrical connector; and a connection box connected to an end of the first lead wire (40) away from the second electrical connector, the connection box being configured to be electrically connected to an external device.
Resumen de: US2025150027A1
A power plant system comprising a number of energy converters fed by light, which are preceded on the light side by a converging lens arrangement.
Resumen de: US2025150021A1
A system includes first, second and third photovoltaic modules on a rood. Each module includes an upper edge, a lower edge and at least one solar cell. Lower edges of the cells of the first and second modules are offset from lower edges of the first and second modules. Upper edge of the cell of the second module is offset from the upper edge of the second module. The upper edge of the cell of the third module is offset from the upper edge of the third module. The first module overlays the second module. The lower edge of the cell of the first module is substantially aligned with the upper edge of the cell of the second module. The second module overlays the third module. The lower edge of the cell of the second module is substantially aligned with the upper edge of the cell of the third module.
Resumen de: US2025150023A1
An on-site photovoltaic (PV) module assembly system and process may involve customizing assembly of a row of PV modules at the location of a particular solar site. Mounting rails or other mounting structures configured to interface a PV module with a torque tube may be positioned along the torque tube on site to account for physical characteristics and properties of the particular solar site. PV modules may be attached to one or more of the mounting rails by an adhesive. Using the adhesive to attach the PV modules to the mounting rails may increase the flexibility of PV module installation along the torque tube. Use of the adhesive may also decrease the number of fastening components included with the mounting rail and the PV module, such as a structural rail or module rails.
Resumen de: US2025150019A1
A solar cell system is for use on a roof. The solar cell system has solar panels assembled in a longitudinal direction of the roof and in a width direction of the roof. The solar panels are adjoining each other, without overlap, in the longitudinal direction and are spaced apart in the width direction of the roof. A clamping profile is arranged in the longitudinal direction of the roof for clamping the solar panels down against the roof and for covering the gap between the solar panels in the width direction. The clamping profile is fastened directly to the roof by use of fastening means. A method for assembling a solar cell system on a roof is also described.
Resumen de: WO2025060514A1
A photovoltaic module and a photovoltaic device. The photovoltaic module (1000) comprises: interconnection strips (200), busbars (300), and a plurality of cell strings (400). The cell strings (400) each comprise a plurality of cell units (100) which are arranged in sequence, and every two adjacent cell units (100) are connected by means of an interconnection strip (200); and a plurality of power generation units (500) are formed in the photovoltaic module (1000), the busbars (300) are arranged on the back surface of the photovoltaic module (1000), and the plurality of power generation units (500) are electrically connected in series by means of the busbars (300) and the interconnection strips (200). Therefore, the problems of limitation on costs, efficiency, manufacturing procedures and the like due to the back surfaces of cells needing to be directly connected to busbars are solved; additionally, the busbars are arranged on the back surface of the photovoltaic module, such that the problem of low efficiency caused by welding of the busbars and interconnection bars in a half-cell module is solved, thereby improving module efficiency, reducing costs, widening the technological manufacturing procedures, and enhancing user experience.
Resumen de: US2025150025A1
The present invention provides a transmission device applied to a photovoltaic tracking support. The photovoltaic tracking support comprises a stand column and a main beam. The main beam is rotatably supported on the stand column, and the main beam supports a photovoltaic assembly. The transmission device comprises a composite chain gear set and a composite chain wheel set. The composite chain gear set has multiple chain gears. The multiple chain gears are coaxially arranged and are arranged in a manner that the teeth are staggered. The composite chain wheel set has multiple chain wheels. The multiple chain wheels are coaxially arranged, and are in one-to-one correspondence to and meshing transmission with the multiple chain gears. One of the composite chain gear set and the composite chain wheel set is rotatably disposed on the stand column, and the other is connected to the main beam. The present invention also provides a photovoltaic tracking support comprising the transmission device. When the transmission device is applied to the photovoltaic tracking support, the shaking amplitude of the photovoltaic tracking support under the action of strong wind can be reduced, wear can be decreased, and the transmission device adapts to grease-free lubrication conditions.
Resumen de: US2025150030A1
A hybrid solar panel includes a solar photovoltaic panel configured to generate electrical energy by receiving sunlight, a solar thermal panel formed on a lower portion of the solar photovoltaic panel, and a lattice-type refrigerant flow path which is formed inside the solar thermal panel and in which a horizontal guide unit is formed, the horizontal guide unit being configured to guide at least a portion of a refrigerant for cooling the solar photovoltaic panel by absorbing heat generated as sunlight irradiates the solar photovoltaic panel to a horizontal direction.
Resumen de: US2025150024A1
A wave-resistant photovoltaic float used in a water environment, which includes multiple photovoltaic carriers and a photovoltaic module. The photovoltaic carrier includes an upper component and a lower component, which are integrally formed. The upper component is smaller than the lower component in terms of length and width. The lower component of the photovoltaic carrier is a flat-shaped floating structure. A hollow portion is provided in the middle of the lower component, and acts as a suction cup.
Resumen de: US2025150022A1
The present disclosure relates generally to roofing systems, for example, suitable for covering the roof of a house or other building. The present disclosure relates more particularly to a roofing system including first and second group of roofing panels. Each roofing panel of the first group is a solar roofing panel and includes a light transmissible front layer, a back layer, photovoltaic cells disposed between a rear surface of the front layer and a front surface of the back layer, and a color-matching surface disposed behind the front layer. Each roofing panel of the second group is a cuttable non-solar roofing panel and includes a cuttable substrate. Visual characteristics of a front face of the roofing panels of the first group and a front face of roofing panels of the second group match.
Resumen de: US2025150020A1
A roof integrated photovoltaic system includes a starter bar having a foot base and configured to be installed to a roof deck, a plurality of water shedding layers, and a photovoltaic module. One of the plurality of water shedding layers is configured to be installed over the foot base of the starter bar, and one of another of which is configured to overlap and be installed over the one of the plurality of water shedding layers. The system further includes a foot module configured to be attached to an upper portion of the photovoltaic module. A lower portion of the photovoltaic module is configured to align with the foot base of the starter bar, and the foot module is configured to be affixed on a last overlapping layer of the plurality of water shedding layers to the roof deck.
Resumen de: EP4550625A2
A wireless optical power transmission system comprising a transmitter and receiver, the transmitter comprising a laser emitting a beam, a scanning mirror for steering the beam towards said receiver and a control unit receiving signals from a detection unit on the receiver and controlling the beam power and the scanning mirror. The receiver has a photovoltaic cell having a bandgap energy of 0.75-1.2 eV, with a plurality of conductors on a beam receiving surface. A cover layer of material blocking illumination of wavelengths outside that of the laser, is disposed on the photovoltaic cell. The cover layer may have anti-reflective coatings on its top and bottom surfaces. The detection unit thus generates a signal representing the power of the laser beam impinging upon the receiver, independent of illuminations other than that of said laser beam. The control unit thus can maintain the laser power impinging on the receiver.
Resumen de: CN119403984A
Known photovoltaic roof tiles replace traditional roof tiles in a single lap arrangement. In order to prevent rainwater from passing between adjacent tiles and permeating into a building below, the photovoltaic roof tile is provided with interlocking edges; however, the manufacturing cost of these devices may be very high, and the installation is also time-consuming. One more economical choice of laying tiles is the use of a double lap tile arrangement. Because the planar tiles have no interlocking edges, water may leak through the joints between the tiles. This entails the placement of a third tile under the joint to intercept any passing water. However, when the double lap tiles are used, a substantial portion of each tile is still covered after installation, so that a relatively small surface area can be exposed to the sun. This is not effective utilization of expensive photovoltaic materials. The invention provides a photovoltaic roof tile 302 for use with a double lap tile 301, the tile width of the photovoltaic roof tile 302 being equal to an integer multiple of the width of the double lap tile. In this manner, such a photovoltaic roof tile 302 can be arranged with a conventional double lap roof tile 301 to increase the proportion it can be used to receive sunlight 305, 307 without the risk of water ingress.
Resumen de: EP4550603A1
This application provides a photovoltaic energy storage system, an energy conversion system, an inverter, and a power balancing method. The photovoltaic energy storage system includes an energy storage assembly, an inverter, a PCS, a load switch circuit, a BMS, and an EMS. The PCS is connected to the energy storage assembly and the load switch circuit, and the inverter is connected to a photovoltaic array and the PCS. Based on at least one of a first parameter, a second parameter, and a third parameter, the EMS adjusts a generation power of the photovoltaic array and/or controls, through the load switch circuit, a quantity of connected loads, to implement power balancing among the generation power, a total charge/discharge power of energy storage, and a consumption power. The first parameter includes a minimum power in a target charge/discharge power of the energy storage assembly and a charge/discharge power of the PCS, and the total charge/discharge power of the energy storage assembly. The second parameter includes minimum alternating current side voltages collected by the PCS and the inverter. The third parameter includes minimum alternating current side frequencies collected by the PCS and the inverter. Therefore, the EMS may integrate device information, and adjust the power based on the minimum parameter, to maintain power balancing and avoid device damage.
Resumen de: EP4550659A1
Photovoltaik-Anlage (1) mit einer Tragkonstruktion mit einer Vielzahl von in einem Untergrund (3) verankerbaren Pfosten (2) und mindestens einem bifazialen Photovoltaikmodul (4) zwischen zwei benachbarten Pfosten (2), wobei das mindestens eine bifaziale Photovoltaikmodul (4) an vier Ecken an jeweils einem Halteelement (5) gehalten ist und jedes Halteelement (5) an einem der Pfosten (2) fixiert ist. Ferner betrifft die Erfindung ein Verfahren zur Montage einer Photovoltaik-Anlage (1), die mit geringem Materialeinsatz aufgestellt werden kann und leicht zu montieren ist.
Resumen de: EP4550424A1
A solar cell is provided, including: a substrate; a passivation layer formed over a surface of the substrate; fingers arranged in a first direction and extending in a second direction, where the fingers penetrate the passivation layer to be electrically connected to the substrate and include first fingers and second fingers which are alternatingly arranged; connection electrodes, where each of the connection electrodes is in electrical contact with end portions of at least two adjacent first fingers on a same side and includes one of the following: at least a first connection section and a second connection section connected to each other, where the first connection section is connected to an end portion of a respective finger of the at least two adjacent first fingers, the first connection section and the respective finger has an included angle that is not equal to 180°, and the first connection section and the second connection section has an included angle that is not equal to 180°; and a curved wave-like structure.
Resumen de: EP4549445A1
The present invention provides a thin film comprising a perovskite halide represented by chemical formula 1. Chemical formula 1 AB(BrxCly)3wherein, A is a monovalent cation consisting of a combination of NH2CHNH2<+> (formamidinium, FA), CH3NH3<+> (methyl ammonium, MA) and Cs<+>, wherein FA is included in an amount of 0.2 - 0.8 moles with respect to 1 mole of the monovalent cation, B is at least one divalent cation selected from Pb<2+>, Sn<2+>, Ge<2+>, Ti<2+>, Zr<2+>, Mn<2+>, Ni<2+>, Fe<2+>, Zn<2+> and Cu<2+>, and x and y satisfy 0.5≤x≤0.8, 0.2≤y≤0.5, and x+y=1.
Resumen de: EP4550239A1
If the status survey and repair work for the photovoltaic equipment (52) cannot be handled by the asset management platform (10), the transmission unit (18) sends a request for information provision from the asset management platform (10) to the central platform (40), and the information about the maintenance companies capable of performing the work, which is stored in the database (44) of the central platform (40), can be accessed from the asset management platform (10).
Resumen de: WO2024000058A1
A lighting apparatus has a lighting component, an energy storage unit, a photovoltaic (PV) panel for at least one of powering the lighting component and charging the energy storage unit, a wind turbine having a plurality of rotatable blades coupled to a generator for at least one of powering the lighting component and charging the energy storage unit, and a housing receiving therein at least the lighting component, the energy storage unit, and the PV panel. The wind turbine is physically coupled to the housing.
Resumen de: WO2024094872A1
A solar cell assembly comprising: adjacent layers defining an interior lumen, sealant between the adjacent layers to seal the interior lumen, and a solar cell within the sealed lumen, characterised in that the solar cell is a perovskite solar cell and in that a layer comprising ta-C is present on an external surface of the assembly, e.g. on a front and/or a back layer of the assembly, or on the sealant, e.g. at the junction between the sealant and each of the adjacent layers. The solar cell assembly is made by assembling the solar cell, adjacent layers and sealant, and depositing a ta-C coating onto an external surface of the assembly. The resultant assembly is resistant to water and/or air ingress and has improved stability in use.
Resumen de: EP4549836A1
Die Erfindung betrifft ein Gehäuse (7) zum Befestigen eines Solarmoduls (1) in einem Dach und/oder in einer Wandverkleidung mit einer im betriebsbereiten Zustand der Sonne zugewandten flächigen Seite (8) und eine im betriebsbereiten Zustand der Sonne abgewandten flächigen Seite, das Gehäuse (7) aufweisendeinen Rahmen (9) zum Aufnehmen des Solarmoduls (1) umfassend eine im betriebsbereiten Zustand dem Erdboden abgewandte erste Querseite (T1), eine im betriebsbereiten Zustand dem Erdboden zugewandte zweite Querseite (T2) und zwei zwischen den Querseiten (Ta, T2) angeordneten Längsseiten (L1, L2), wobei der Rahmen (9) dazu ausgestaltet ist, das Solarmodul (1) in einer ersten Ebene anzuordnen,einen an der der Sonne abgewandten Seite angrenzenden Hohlraum (6), wobei der Hohlraum (6) in einer zweiten zu der ersten Ebene unterschiedlichen Ebene angeordnet ist,einen an der ersten Querseite (T1) angeordneten Einlass (10), der dazu ausgestaltet ist, ein Fluid in den Hohlraum (6) zu leiten und einen an der zweiten Querseite (T2) angeordneten Auslass (11), der dazu ausgestaltet ist, das Fluid aus dem Hohlraum (6) abzuleiten, undeine Auffangwanne (12), die derart in einer zu der ersten und zweiten Ebene unterschiedlichen dritten Ebene angeordnet ist, dass der Hohlraum (6) zwischen dem Solarmodul (1) und der Auffangwanne (12) eingeschlossen wird.Auf diese Weise wird ein Gehäuse für ein Solarmodul bereitgestellt, das eine dachintegrierte Montage auch ohne vorhandene Hinterlüftung er
Resumen de: WO2024005657A1
The subject of the invention is a self-cleaning photovoltaic roof tile, that is characterized in that it consists of an upper transparent glass plate (4), the upper surface of which is coated with a coloured ceramic coating (5) printed thereon, with a thickness of < 45 µm, which is coated with a self- cleaning hydrophobic layer (6) with a thickness of 300 nm and 800 nm, and a lower transparent glass plate (7) with an identical profile, the lower surface of which is coated with the coloured ceramic coating (8), wherein between the lower surface of the upper glass plate (4) and the upper surface of the lower glass plate (7) there is at least one monocrystalline cell (9) located above their lower sides (2), and additionally both glass plates (4, 7) together with a monocrystalline cell (9) placed between them, with electric wires (11), are laminated together by means of laminating foil (10).
Resumen de: WO2024003051A1
The invention relates to a solar cell test procedure, a solar cell production procedure, a solar cell test system and a solar cell production system. The solar cell test procedure for testing a plurality of solar cells at the respective end of one or more production lines comprises the following method steps: carrying out a primary measuring method (210) on the solar cell to determine a primary measurement result; evaluating the primary measurement result by means of an evaluation method (300) such that an evaluation result is determined, the evaluation result being positive if it is determined, by means of the evaluation result, that the solar cell can be classified into a predefined sort category on the basis of only the primary measurement result, and negative if it is determined, by means of the evaluation result, that the solar cell cannot be classified into a predefined sort category on the basis of only the primary measurement result; classifying (400) the solar cell into a sort category depending on the primary measurement result if the evaluation result was positive, carrying out a secondary measuring method (220) on the solar cell to determine a secondary measurement result and classifying (400) the solar cell into a sort category depending on the secondary measurement result and optionally the primary measurement result if the evaluation result was negative.
Resumen de: CN119452771A
The invention relates to an optoelectronic component comprising a bottom electrode (2), a top electrode (6) and a layer system (7) having at least one photoactive layer (4). The layer system is arranged between the bottom electrode and the top electrode, and at least one photoactive layer is designed as a planar heterojunction (PHJ), the at least one photoactive layer designed as a planar heterojunction having at least one compound of general formula I. The invention also relates to the use of such compounds of general formula I in optoelectronic components and to a compound of general formula II.
Resumen de: WO2024002431A1
The invention relates to an organic electronic component comprising a layer system with a photoactive layer (9). The photoactive layer has an acceptor layer (5) with at least one acceptor and a cascade of at least two donor layers (6, D1, D2, D3) which follow each other in direct contact, said cascade being arranged on the acceptor layer. The invention also relates to the use of a compound of the general formula I and/or a compound of the general formula II in a cascade of an organic electronic component.
Resumen de: WO2024002424A1
The invention relates to an organic electronic construction element having an electrode, a counter electrode and a layer system between the electrode and the counter electrode, wherein at least one layer of the layer system has a chemical compound of general formula (I), to use of such a chemical compound as an n-dopant for doping at least one layer in a layer system of an organic electronic construction element, and to a chemical compound of general formula (II).
Resumen de: AU2023298293A1
The invention relates to an installation (1) for generating electricity by means of photovoltaics, wherein the installation (1) has at least four solar modules (2), wherein the solar modules (2) are distributed between at least two solar surfaces (3) so that each solar surface (3) has at least two solar modules (2), wherein the solar surfaces (3) are vertically one above another in a parallel offset arrangement, wherein the solar modules (2) are connected in at least two strings (4, 5), wherein each of the at least two strings (4, 5) comprises at least one solar module (2) on at least two different solar surfaces (3), wherein each string (4, 5) is assigned a usable depth (6, 7), wherein the usable depth (6, 7) corresponds to the maximum distance between the solar modules (2) of the string (4, 5) and an outer edge (8) of the solar surface (3) of the relevant solar module (2), wherein the strings (4, 5) have at least two different usable depths (6, 7).
Resumen de: WO2024002836A1
The invention is based on a facade system having a holding device (10), which has at least one recess (12, 14, 98, 100), and having at least one first type of facade element (16, 18, 74), wherein the recess (12) is designed to receive at least one extension (20, 22) of the facade element (16, 18) of the first type in order to fasten the facade element (16, 18) of the first type to the holding device (10). It is proposed that the facade system has at least one adapter device (24, 118, 120) which is designed to be at least partially introduced into the recess (14, 98, 100) in order therefore to fasten at least one second type of facade element (26, 28), in particular a solar facade element, to the holding device (10).
Resumen de: WO2024002968A1
The invention relates to a solar installation having solar panels (2, 2') which are prefabricated in a Leporello fold (3), which can be unfolded in an unfolding direction (A), said installation having a substructure on which the solar panels are arranged, wherein the substructure is flexible in the unfolding direction (A) and is connected to the solar panels in a positionally fixed manner in such a way that the Leporello fold (3) of the solar panels can be unfolded with the substructure (8, 9, 10, 24) and determines angular positions of the solar panels (2, 2') relative to one another.
Resumen de: EP4550982A1
L'invention porte sur un ensemble comprenant :o au moins une cellule photovoltaïque comprenant une face sur laquelle est ménagée une grille de collecte,o au moins un ruban d'interconnexion fixé sur ladite face, et destiné à raccorder électriquement et mécaniquement la cellule photovoltaïque à une autre cellule photovoltaïque, eto au moins une ligne de colle (30), réalisée en un matériau électriquement conducteur, disposée entre la grille de collecte et le ruban d'interconnexion, la ligne de colle (30) étant adaptée pour raccorder mécaniquement et électriquement le ruban d'interconnexion à la cellule photovoltaïque, la ligne de colle (30) s'étendant sensiblement selon un axe longitudinal principal (X) et présentant une largeur (I) sensiblement constante.La ligne de colle (30) est disposée selon un motif en zigzag formé d'une pluralité de segments (31) formant chacun un angle (α) inférieur ou égal à 30° avec l'axe longitudinal principal (X).
Resumen de: FR3154890A1
Système de production d’énergie photovoltaïque et procédé de pilotage d’un tel système Système de production d’énergie photovoltaïque, comprenant une pluralité de panneaux (P1 à P2), chaque panneau (P1 à P2) comprenant un module photovoltaïque (6), et étant monté mobile en rotation sur une structure porteuse (2 à 4) autour d’un axe de rotation (A), un dispositif d’enroulement (10) porté par une première zone de fixation (Z1) d’un premier panneau (P1), une toile (14) configurée pour être accrochée par une première de ses extrémités (E1) au dispositif d’enroulement (10) et par une deuxième de ses extrémités (E2) à une deuxième zone de fixation (Z2) d’un deuxième panneau (P2) de manière à couvrir au moins une partie d’une zone (ZS) du sol située verticalement au-dessous de la toile (14), le système étant configuré pour que la toile (14) s’enroule dans le dispositif d’enroulement (10) en fonction d’une position relative des première et deuxième zones de fixation (Z1, Z2). Figure pour l’abrégé : Fig.1
Resumen de: US2025136251A1
An adjustable ocean buoy bracket for supporting sensors includes a support mechanism, a bearing mechanism, and an energy supply mechanism. The bearing mechanism is bolted to the upper surface of the support mechanism, and the energy supply mechanism is bolted inside the bearing mechanism. The buoy bracket further comprises a change mechanism. Through this change mechanism, the sensor performs a reciprocal motion for cleaning, thereby prolonging its service life.
Resumen de: US2025137516A1
A drive arrangement for solar modules is disclosed. The drive arrangement comprises a transmission member rotatable about a rotational axis comprising a drive member and a holding member, wherein the drive member is disposed with an offset in the radial direction to the holding member, and an output unit, wherein the output unit comprises a drive recess and a retaining recess, wherein the drive member is assigned to the drive recess and engages with the drive recess to drive the output unit, wherein the holding member is assigned to the retaining recess and engages with the retaining recess to keep the output unit in its set position, wherein the drive recess has an entry opening, an end area, and a middle area that is between the entry opening and the end area, wherein the drive recess in the middle area compared to the end area has a reduced cross section.
Resumen de: US2025137392A1
A series of systems are disclosed for the capture of harmful emissions, and subsequent use of the captured gasses e.g. in combustion. Engines or other combustors are operated to increase the production of more useful emissions such as Carbon Monoxide CO and Oxides of Nitrogen NOx. Also disclosed are methods for using wasted heat from engines, brakes and shock absorbers, and for cooling solar panels for increased efficiency. Fuel pumps are disclosed with additional tubing to remove captured exhaust from vehicles, as well as supplying additional vehicle fluids. Monitoring systems may track emissions reduced or removed, and may be used as an accreditation/trading system.
Resumen de: US2025141400A1
An inline DC feeder DC/DC voltage step-up harness for photovoltaic solar facilities includes a housing, a plurality of PV input connectors, at least one PV output connector. The housing incorporates a DC/DC converter, and has an input and an output. The plurality of PV input connectors are operatively connected to the housing at the input. The PV output connector is operatively connected to the housing at the output.
Resumen de: US2025141394A1
A solar module that is operable in the extra-low voltage range and includes at least one photovoltaic cell for converting radiant energy into electrical energy and two planar elements made of plastic that sandwich the at least one photovoltaic cell. The solar module has at least one positive contact element and at least one negative contact element for tapping an electrical output voltage of the solar module. The positive contact element and the negative contact element are arranged at least partially between the two planar elements and each include at least one electrically uninsulated exposed contacting portion. A solar module system includes a plurality of solar modules connected in parallel and a bearing structure which electrically interconnects and supports the plurality of solar modules.
Resumen de: US2025141401A1
The present invention relates to a solar energy harvesting system preferably mounted in a relatively flat position and isolated from its external operating weather environment to maximize automated installation, minimize embodied carbon dioxide footprint, and minimize deployment and environmental uncertainties driving up total installed system cost. The environmental weather isolation further empowers solar design features by minimizing and isolating structural design load requirements away from the objects receiving the solar energy through a multifunctional film that isolates the objects receiving solar energy from the weather.
Resumen de: US2025141396A1
A roof mount includes a base, an adjustment assembly operatively coupled to the base, the adjustment assembly including a partially threaded shaft extending along an axis substantially perpendicular to the roof, an adjustment nut constrained within the adjustment assembly, and a support nut. A clamp is adjustably connected to the base and a distance between the clamp and the base is adjustable. The clamp includes a first clamp portion and second clamp portion, the first clamp portion having a central portion, a first support surface, and a second support surface. The first support surface includes an angled first portion and a substantially horizontal second portion and is configured to support a first solar panel. The central portion is disposed between the first support surface and the second support surface. A fastener is connected to the clamp and is operable to tighten the second clamp portion to the first clamp portion.
Resumen de: US2025141398A1
This innovation involves an innovative structure for supporting and moving photovoltaic panels joined by a structure using transverse rafters supported by a central bar, the torque axis, suspended and supported by spaced-apart stakes that are moved by an actuator motor to allow the panels to be angled according to the convenience and need for capturing sunlight.
Resumen de: US2025141393A1
A photovoltaic device and a wireless charging device including the same are disclosed. In an embodiment, a photovoltaic device includes a piezoelectric module configured to receive a pressure and to generate first electrical energy by converting energy from the received pressure into the first electrical energy, and a photovoltaic module configured to receive the first electrical energy generated from the received pressure by the piezoelectric module and configured to include a single photon avalanche diode (SPAD) configured to be powered by using the first electrical energy from the piezoelectric module to generate a current signal by responding to incident light incident upon the photovoltaic module.
Resumen de: US2025141402A1
An energy harvesting device configured to convert thermal energy into electrical energy includes a heat storage portion configured to store thermal energy, a thermoelectric element configured to eliminate a temperature difference between electrodes when converting thermal energy into electrical energy, and an insulating portion in contact with the heat storage portion and the thermoelectric element. The heat storage portion has insulating properties. The thermoelectric element includes a pair of electrodes having work functions different from each other, and an intermediate portion provided between the pair of electrodes. The thermoelectric element is provided in contact with the heat storage portion and is covered by the insulating portion.
Resumen de: US2025141403A1
A device comprises a platform constructed and arranged to be mounted to one or more solar array modules and one or more solar irradiance sensors on the platform configured to receive incident solar energy, the one or more solar irradiance sensors oriented on the platform so that the received incident solar energy is comparable to that received by the solar array modules, the one or more solar irradiance sensors providing solar irradiance signals in response to the incident solar energy. A processor is on the platform, the processor configured to receive the solar irradiance signals and, in response, generating a performance reference metric based on the solar irradiance signals, the performance reference metric related to the expected performance of the one or more solar array modules to which the platform is mounted. A transmitter is on the platform, the transmitter configured to periodically transmit the performance reference metric to a receiver.
Resumen de: US2025141270A1
Systems and methods for deployable and reusable autonomous vehicle systems and networks are provided. The autonomous vehicles include solar power satellite sandwich modules for collecting solar radiation and/or radiant heat and converting it to useable energy to power on-board systems, for storage, or for transmission as electromagnetic radiation in wireless power transfer. The autonomous vehicles disclosed herein may be configured as nodes in a fixed or mobile deployable network for wireless power distribution and/or data transmission across multiple domains (water/land-to-air-to-space). Fleets of autonomous vehicles may be configured for various applications such as micro- or macro-wireless power grids, beam riding highways for orbital raising, point-to-point-transport and in-flight charging, on Earth and in Space.
Resumen de: US2025143175A1
An optoelectronic device includes a first electrode, a second electrode facing the first electrode, and a photoactive layer between the first electrode and the second electrode, where the photoactive layer may include an acceptor satisfying Expression 1 and a donor having a maximum absorption wavelength of about 600 nm to about 750 nm, and Expression 2 may be satisfied:3eV≤ELUMOA-EHOMOA≤4eVExpression10.05≤(ELUMOD-ELUMOA)/(ELUMOD-EHOMOD)≤0.5.Expression2
Resumen de: US2025143176A1
The present disclosure discloses an organic electroluminescent device. The device of the present disclosure has at least one layer in the hole transport layer that is a compound with an alkyl, cycloalkyl, deuterated alkyl, or deuterated cycloalkyl substitution on the biphenyl group; and substitution of alkyl, cycloalkyl, deuterated alkyl, deuterated cycloalkyl has the following advantages: larger spatial steric hindrance and torque, higher hole mobility, better solubility, higher efficiency and longer lifespan, and higher lateral resistance. Therefore, when paired with the P-dopant material currently used in the market, the lateral leakage of the device is significantly reduced and the technical problem of client-side crosstalk is solved.
Resumen de: US2025143182A1
The present disclosure relates to a pure organic molecule (free of a metal center) and use thereof as an emitter or absorber in an optoelectronic device. According to the present disclosure, the pure organic molecule includes a structure of Formula A.wherein(Het)Ar=a conjugated organic group selected from the group consisting of unsubstituted and substituted aromatics, unsubstituted and substituted heteroaromatics, and conjugated double bonds fixed against cis-trans isomerization,D=a chemically bonded donor group having electron donating properties,A=a chemically bonded acceptor group having electron accepting properties, andA and D are bonded to adjacent atoms of (Het)Ar.
Resumen de: US2025143078A1
A display device includes: a substrate having an opening; a plurality of display elements at a display area adjacent to the opening, the plurality of display elements each including a pixel electrode, an opposite electrode, and an intermediate layer between the pixel electrode and the opposite electrode; and a metal stacked structure between the opening and the display area, and including: a first sub-metal layer having a first hole; and a second sub-metal layer under the first sub-metal layer and having a second hole, the second hole overlapping with the first hole and having a width greater than a width of the first hole.
Resumen de: US2025143082A1
A display apparatus includes a main display area, and a component area including pixel groups spaced apart from each other and a transmission area between the pixel groups. The display apparatus further includes a substrate including a first base layer, a compensation layer, a first barrier layer, and a second barrier layer sequentially stacked on one another, a bottom metal layer between the first barrier layer and the second barrier layer, a buffer layer on the second barrier layer, main display elements on the substrate of the main display area, and auxiliary display elements on the substrate of the component area.
Resumen de: US2025143076A1
A display device includes a flexible substrate including a first region including a display region, a second region including a curved region, and a third region including a terminal region; an electro-optical element located in the display region; and a resin layer continuously extending from the first region to the third region.
Resumen de: US2025142978A1
A photovoltaic cell can include an interfacial layer in contact with a semiconductor layer.
Resumen de: US2025142981A1
Disclosed is a bendable and flexible photovoltaic device comprising a photovoltaic cell; an adhesive layer, provided on both sides of the photovoltaic cell; and an encapsule layer, provided on the adhesive layer to encapsulate the photovoltaic cell. The encapsulant layer comprises cured silicone.
Resumen de: US2025143008A1
The present disclosure discloses a method for manufacturing a back contact solar cell. The manufacturing method includes: providing a substrate; forming sequentially a first interface passivation layer and a first doped layer on the first surface of the substrate; forming a first mask layer on merely a surface of the first doped layer that is located within the first doped region; removing the first doped layer and the first interface passivation layer that are located within the second doped region and the third region; forming sequentially a second interface passivation layer and a second doped layer on the first mask layer, the second doped region and the third region at a same time, wherein a conductive type of the second doped layer are opposite to a conductive type of the first doped layer.
Resumen de: US2025143160A1
Disclosed herein is a display apparatus, including: a foldable substrate; a pixel array section including a plurality of pixels disposed on the substrate and each including an electro-optical device; the foldable substrate being folded at a substrate end portion at least on one side thereof around the pixel array section; a peripheral circuit section disposed on the substrate end portion and adapted to drive the pixels of the pixel array section; and a pad section provided on the substrate end portion on which the peripheral circuit section is provided and adapted to electrically connect the peripheral circuit section to the outside of the substrate.
Resumen de: US2025143062A1
Disclosed are a light-emitting device, a display panel, a display apparatus and a method for manufacturing a light-emitting device. The light-emitting device includes a first film layer, a light-emitting structure, and a second electrode layer. Where the first film layer includes a middle portion, and an edge portion surrounding the middle portion; the light-emitting structure includes an organic light-emitting layer and a flat portion, the flat portion is located in a region where a smaller one of the first distance and the second distance is located, and the flat portion matches with a contact film layer in energy level, so that after being filled with the flat portion, a film thickness between a surface of the light-emitting structure facing away from the first film layer and the base substrate is consistent.
Resumen de: US2025142982A1
Various implementations described herein are directed to determining an order or locations of power devices connected in a serial string to a central power device. The order or locations may be stored in a non-volatile computer-readable storage medium.
Resumen de: US2025142972A1
A display device includes: a substrate; a polycrystalline silicon film on the substrate; and a first buffer film between the substrate and the polycrystalline silicon film and having one surface contacting the polycrystalline silicon film and another surface opposite to the one surface, wherein the one surface of the first buffer film has a first root mean square (RMS) roughness range, and the first RMS roughness range is 1.5 nm or less.
Resumen de: WO2025090902A1
A roofing system includes a roof deck and at least one photovoltaic module installed on the roof deck. The first photovoltaic module includes at least one solar cell and a sealant. At least one fastener penetrates the sealant and the roof deck.
Resumen de: WO2025090662A1
An exemplary system and method employing a set of in-series DC-to-AC converters, also referred to as nanoinverters, that can provide an improved DC-to-AC conversion operation with multiple and individualized Maximum Power Point (MPP) for each respective DC-to-AC converter. The in-series DC-to-AC converters are beneficially coupled or integrated into a photovoltaic panel or a small subset thereof from the overall setup of PV panels to provide optimized routing and installation. The exemplary system can address issues related to string inverters, DC optimizers, and microinverters by providing such functionality but with minimal circuitry and hardware, as well as providing safe, flexible, and cost-effective operation when directly coupled to photovoltaic panels.
Resumen de: US2025141395A1
A roofing system, including a roof deck and a plurality of photovoltaic modules installed on the roof deck. Each of the plurality of photovoltaic modules includes at least one solar cell, an encapsulant encapsulating the at least one solar cell, and a backsheet below the encapsulant. The backsheet includes a first layer, where the first layer contacts the roof deck, and where the first layer comprises a plurality of cavities or a plurality of ribs.
Resumen de: US2025141399A1
Support platforms for one or more solar panels and systems and methods for securing support platforms are provided. In one embodiment, a frame of a support platform includes a plurality of support legs, each leg including a shoe plate. One or more toggle anchors with rod and/or cable are provided that include an anchor portion and a toggle portion pivotally coupled to the anchor portion, and a rod and/or cable is coupled to the toggle portion. Each anchor is driven into the ground with a driving rod such that an exposed end of the rod and/or cable extends from the ground. The driving rod is removed, and the rod and/or cable is pulled to deploy the anchor, and which the anchor is pull tested and measured in real time soil conditions whereupon the 10 exposed end is coupled to the shoe plate of one of the support legs to apply a desired tensile force between the exposed end and the anchor to secure the support leg and, consequently, the support platform relative to the ground.
Resumen de: US2025141233A1
Method for optimizing a maximum power point of a solar cell stack having modules, each including an MLSD unit, and an inverter. The MLSD unit shuts down the module when module voltage falls below a first voltage threshold, and switches it on, when a predefined second voltage threshold is exceeded. For optimal performance, the solar cell stack carries out: Defining, changing an electrical control parameter to a first wait value so that the second voltage threshold is exceeded exceeded; maintaining first wait value for a first time period so the modules are switched on by the MLSD units; changing electrical control parameter to a threshold value in a variation range and determining current-voltage curves for the modules in variation range; determining maximum stack power from current-voltage curves of the modules in the variation range; and predefining the determined maximum stack power as the maximum performance point.
Resumen de: US2025141397A1
A roofing system includes a roof deck and at least one photovoltaic module installed on the roof deck. The first photovoltaic module includes at least one solar cell and a sealant. At least one fastener penetrates the sealant and the roof deck.
Resumen de: WO2025090050A1
The present invention relates to the detection of the error in photovoltaic panels on a panel cell basis by thermal inspection from unmanned aerial vehicle images with artificial intelligence technology, performing temperature measurement, model conversion of images from two dimensions to three dimensions, real-time solar simulation and field navigation analysis.
Resumen de: WO2025089618A1
A photovoltaic (PV) system may include a plurality of PV modules connected in series, each PV module of the plurality of PV modules being configured to harvest solar energy, and output the harvested solar energy as direct current (DC); at least one inverter connected to the plurality of PV modules, the at least one inverter configured to, receive the DC output by the plurality of PV modules, and convert the DC output into alternating current (AC); each PV module of the plurality of PV modules includes at least one capacitor configured to store the harvested solar energy; and processing circuitry configured to, monitor a charging voltage of the at least one capacitor, and control the DC output of the PV module based on the monitored charging voltage of the at least one capacitor.
Resumen de: WO2025089878A1
A non-conductive substrate-based flexible thin film solar cell module according to an embodiment of the present invention includes: a first layer at least a part of which includes molybdenum (Mo); a second layer which is disposed below the first layer and at least a part of which includes polyimide (PI); and a metal electrode part passing through at least a part of the first layer and the second layer close to ends thereof.
Resumen de: WO2025089382A1
Provided is a photoelectric conversion element having improved conversion efficiency. The photoelectric conversion element includes a first electrode, a second electrode, and a photoelectric conversion layer that is disposed between the first electrode and the second electrode and that includes a crystal having a perovskite structure. The photoelectric conversion element includes a charge transport layer containing a phthalocyanine crystal between the photoelectric conversion layer and the first electrode. In an X-ray diffraction spectrum, using a CuKα ray, of the phthalocyanine crystal, a peak exists in a range in which a Bragg angle 2θ is from 28.0° to 29.0°, and a lattice spacing d1 nm calculated from a value of 2θ of the peak satisfies 0.3100 ≤ d1 ≤ 0.3160.
Resumen de: WO2025090798A1
Provided herein are various enhancements for solar panels and associated solar arrays. In one example, a method of manufacturing includes forming, by an additive manufacturing process, a stackup of half-panels comprising connected pairs of the half-panels each having an integrated construction comprising a webbing structure connected to a skin layer substantially covering a face. The method also includes separating the stackup into detached pairs of the half-panels, assembling a selected detached pair of the half-panels into a full panel, and attaching photovoltaic cells to a selected face of the full panel.
Resumen de: WO2025089543A1
A method for monitoring a photovoltaic system according to one aspect comprises the steps of: receiving information about the photovoltaic system from an inverter; determining, on the basis of whether the information is received, whether an error has occurred in the inverter or a solar module; and, if an error has occurred in the solar module, outputting a layout of the photovoltaic system on the basis of the type of error of the solar module and transmitting an alarm, wherein the step of determining can include the steps of: determining that an error has occurred in the inverter if the information is not received; determining, on the basis of the information, whether an error has occurred in the solar module if the information is received; and, if it is determined that an error has occurred in the solar module, determining the type of error.
Resumen de: WO2025089369A1
The present invention provides a photoelectric conversion element (1) in which a defect of a crystal that has a perovskite structure is protected, and which has improved leakage resistance and improved conversion efficiency. The photoelectric conversion element (1) includes: a first electrode (7); a second electrode (3); and a photoelectric conversion layer (5) that is disposed between the first electrode (7) and the second electrode (3), and contains a crystal that has a perovskite structure. The photoelectric conversion element (1) has, between the photoelectric conversion layer (5) and the first electrode (7), a charge transport layer (6) that contains a cyclic conjugated compound in which a plurality of pyrrole rings are conjugated and bonded, and an aliphatic resin which has at least one functional group that is selected from the group consisting of a hydroxy group and a carboxy group.
Resumen de: WO2025089376A1
The present invention provides a composition that has improved dispersion stability and that improves the photoelectric conversion efficiency of a photoelectric conversion element in which the composition is used. This photoelectric conversion element has a first electrode, a second electrode, and a photoelectric conversion layer that is disposed between the first electrode and the second electrode and that contains a crystal having a perovskite structure. The photoelectric conversion element is characterized by having a charge transport layer that is disposed between the photoelectric conversion layer and the first electrode and that is in contact with the first electrode, and is characterized in that: the charge transport layer contains an insulating resin, a calixarene compound, and particles of a cyclic conjugated compound in which a plurality of pyrrole rings are conjugated and bonded; and the first electrode is a carbon electrode.
Resumen de: WO2025089371A1
Provided is a photoelectric conversion element having improved conversion efficiency and durability. This photoelectric conversion element (1) comprises a first electrode (7), a second electrode (3) and a photoelectric conversion layer (5) which is disposed between the first electrode (7) and the second electrode (3) and contains crystals having a perovskite structure, said photoelectric conversion element (1) being characterised by having: a layer (6) between the photoelectric conversion layer (5) and the first electrode (7), said layer (6) having crystals of a cyclic conjugated compound in which a plurality of pyrrole rings are conjugated and bonded; and an organic compound in said crystals of a cyclic conjugated compound in which a plurality of pyrrole rings are conjugated and bonded, said organic compound having a pKa of 10.0 or more and a dipole moment of 1.60 D or more.
Resumen de: US2025143173A1
A perovskite layer for use in a solar cell includes a mixture of a halide perovskite and a sulfonyl naphthoquinone-based compound having a structure of Formula (I). Methods for fabricating the perovskite layer and a solar cell including a first active layer of the perovskite layer are also addressed.
Resumen de: WO2025089373A1
The present invention addresses the problem of providing a photoelectric conversion element (1) which has improved durability and photoelectric conversion efficiency thereof. In order to solve the problem, the present invention comprises a photoelectric conversion element (1) which comprises a first electrode (7), a second electrode (3), and a photoelectric conversion layer (5) that is disposed between the first electrode (7) and the second electrode (3) and contains a crystal having a perovskite structure. The photoelectric conversion element (1) is characterized in that: the photoelectric conversion element (1) comprises a charge transport layer (6) between the photoelectric conversion layer (5) and the first electrode (7); the charge transport layer (6) has a P-type semiconductor crystal and a resin; and the P-type semiconductor crystal comprises at least one functional group that is selected from the group consisting of a hydroxy group, a carboxy group, an amino group, an imino group, and a sulfo group.
Resumen de: WO2025089368A1
Provided is a photoelectric conversion element that has improved durability while achieving high initial photoelectric conversion efficiency. The photoelectric conversion element comprises a first electrode, a second electrode, and a photoelectric conversion layer including a crystal of a perovskite structure, and is characterized in that: when the smaller one of the electrode area of the first electrode and the electrode area of the second electrode is S cm2, in a Nyquist plot based on an impedance measurement result, a maximum value Rrec Ω among resistance values obtained by fitting an arc corresponding to a phase maximum value in a low frequency range by a parallel circuit of a resistance element and a constant phase element satisfies the following formula (E1) 1.0 × 104 < Rrec × S < 1.0 × 107 (E1), and a maximum value Rct Ω among resistance values obtained by fitting an arc corresponding to a phase maximum value in a high frequency range by a parallel circuit of a resistance element and a constant phase element and Rrec Ω satisfy the following formula (E2) Rrec/Rct ≥ 25 (E2).
Resumen de: WO2025089392A1
Provided are a photoelectric conversion element and a photoelectric conversion device that have both high open voltage and high durability. The photoelectric conversion element includes a first electrode (8), a second electrode (3), and a photoelectric conversion layer (5) which is disposed between the first electrode (8) and the second electrode (3) and comprises a crystal having a perovskite structure. The photoelectric conversion element is characterized by having, between the photoelectric conversion layer (5) and the first electrode (8), a charge transport layer (6) that includes: crystals of a cyclic conjugated compound which has an axial ligand and which is formed by a plurality of pyrrole rings being conjugate bonded; and a resin with a Lewis basic functional group.
Resumen de: WO2025089395A1
This invention provides a method for manufacturing a photoelectric conversion element with improved photoelectric conversion efficiency. This method for manufacturing a photoelectric conversion element having a first electrode, a photoelectric conversion layer including a crystal of a perovskite structure, a charge transport layer, and a second electrode includes a step for forming the charge transport layer by applying a charge transport layer coating liquid on a surface of the photoelectric conversion layer, the method being characterized in that the charge transport layer coating liquid includes an alcohol liquid, resin, and charge transport particles.
Resumen de: WO2025088462A1
Integrated solar-powered electrochemical device for the extraction and valorization of carbon dioxide from seawater, comprising an electrolyzer (20), an electrical power supply comprising a photovoltaic module (10) and an electrical energy storage system (30), and a control circuit (40) configured to control the electrical connections of the electrolyzer (20) to the photovoltaic module (10) and to the electrical energy storage system (30). The electrolyzer (20) includes a membrane-electrode assembly (23) comprising a porous cathode (24), a porous anode (26) and a bipolar membrane (25) interposed between the cathode (24) and the anode (26). The photovoltaic module (10) comprises a plurality of solar cells (11) integrated onto the anodic flow field plate (22) of the electrolyzer (20), the anodic flow field plate (22) acting as a cathode for the solar cells (11).
Resumen de: WO2025088520A1
A system and method for determination of parameters for the set up of docking stations for electronic devices used in photovoltaic power plants. The system obtains user input comprising a first set of parameters associated with a docking station for an electronic device from a user device. Further, the system determines a second set of parameters associated with the docking station based on the first set of parameters. Furthermore, the system renders the determined second set of parameters including a first parameter indicative of a gap between a docking station frame associated with the docking station and a module edge associated with a solar panel of the set of solar panels, a second parameter indicative of a design slope between the docking station frame and the module edge, and a third parameter indicative of a maximum angular difference between the docking station and an adjacent solar panel of a first tracker.
Resumen de: WO2025089386A1
The present invention addresses the problem of providing a photoelectric conversion element which achieves both mass productivity and uniformity in photoelectric conversion efficiency. In order to solve the problem, the present invention provides a method for manufacturing a photoelectric conversion element, the method including: a step (A) in which a photoelectric conversion layer that includes a crystal having a perovskite structure is formed using a large-area film formation method; and a step (B) in which a charge transport layer is formed by applying a coating material for a charge transport layer onto the surface of the photoelectric conversion layer and subsequently drying the coating material. This method for manufacturing a photoelectric conversion element is characterized in that the coating material for a charge transport layer contains charge transport particles and an insulating resin.
Resumen de: WO2025089401A1
The present invention addresses the problem of providing a photoelectric conversion element that exhibits enhanced durability. In order to solve the problem, the present invention provides a photoelectric conversion element comprising a first electrode, a second electrode, and a photoelectric conversion layer which is disposed between the first electrode and the second electrode and includes perovskite-structure crystals. The photoelectric conversion element is characterized by having a charge transfer layer between the photoelectric conversion layer and the first electrode, and is characterized in that: the charge transfer layer contains a charge transfer substance and an insulating resin which are phase-separated; the ratio of the volume of the region of the charge transfer substance with respect to the volume of the region of the insulating resin is 5-30; and in a binary image of a two-dimensional spatial distribution of a region A and a region B, which is obtained by measuring the charge transfer layer with an optical microscope, when a value which is obtained by subjecting the binary image to Fourier analysis and is acquired by a calculation method for D is defined as D μm, said D μm satisfies 4≤D≤12.
Resumen de: WO2025089384A1
The present invention provides: a photoelectric conversion element which has improved conversion efficiency; and a photoelectric conversion device. Provided is a photoelectric conversion element which has a photoelectric conversion layer (7) that contains a crystal having a perovskite structure, and which is characterized in that: the photoelectric conversion element has a charge transport layer (8), which contains a crystal of a cyclic conjugated compound in which a plurality of pyrrole rings are conjugated and bonded, between the photoelectric conversion layer (7) and a first electrode (9); at a Bragg angle 2θ in an X-ray diffraction spectrum of the charge transport layer (8) obtained using CuKα rays, if peak α is the peak having the maximum intensity among the peaks that are present in the range of 5.0° to 8.0°, and peak β is the peak having the maximum intensity among the peaks that are present in the range of 26.0 to 29.0°, either the peak α or the peak β is the peak having the maximum intensity in the scanning range; and if Iα is the intensity of the peak α and Iβ is the intensity of the peak β, Iα/Iβ is 2.0 or less.
Resumen de: WO2025088478A1
An integrated protection system of a solar panel is disclosed, comprising one or more solar panels (P) having an operating surface, a housing frame comprising at least two support shoulders (1a, 1b) equipped with cross-bars that jointly connect said support shoulders (1a, 1b), which are arranged underneath panel (P) and which serve as supports for said one or more solar panels (P), a pair of transmission shafts (3, 4), held in rotation by said support shoulders (1a, 1b), parallel to and arranged transversely to opposing sides of one or more solar panels (P), a pair of flexible transmission elements (5a, 5b), closed in a loop around said transmission shafts (3, 4), in planes parallel and substantially orthogonal to said operating surface, a drive unit to set that pair of flexible transmission elements (5a, 5b) in motion, and a plurality of slender slats (6), bound at the ends to said pair of flexible transmission elements (5a, 5b), arranged adjacent to each other to form a flexible cover of a length similar to a length of said opposing sides of one or more solar panels (P), wherein said pair of flexible transmission elements (5a, 5b) have upper branches running on a plane arranged at a certain distance above said operating surface and lower branches running on a plane arranged below the one or more solar panels (8) and wherein a brush (7) with cylindrical shape is further provided, mounted integral in translation with said flexible transmission elements (5a, 5b).
Resumen de: WO2025089409A1
The present invention addresses the problem of providing a photoelectric conversion element having an improved short-circuit current density. In order to solve the problem, the present invention provides a photoelectric conversion element having a first electrode (6), a second electrode (2), and a photoelectric conversion layer (4) that is disposed between the first electrode (6) and the second electrode (2) and contains a crystal of a perovskite structure, characterized in that: the photoelectric conversion element includes a charge transport layer (5) provided between the photoelectric conversion layer (4) and the first electrode (6) and containing an amorphous body of a cyclic conjugated compound comprising a plurality of pyrrole rings conjugated to each other; and, with respect to the charge transport layer (5), there is no diffraction peak having a half-value width of 0.5° or less within a range in which the Bragg angle 2θ is 6.5° to 8.5° inclusive in an X-ray diffraction spectrum using CuKα rays.
Resumen de: WO2025089405A1
The present invention addresses the problem of providing a photoelectric conversion element that has improved photoelectric conversion efficiency. In order to solve this problem, the present invention is a photoelectric conversion element (1) having a first electrode (7), a second electrode (3), and a photoelectric conversion layer (5) that is positioned between the first electrode (7) and the second electrode (3) and includes a crystal with a perovskite structure, wherein a charge transport layer (6) is positioned between the photoelectric conversion layer (5) and the first electrode (7), and the charge transport layer (6) is formed from charge transporting particles and an insulating resin, on the surface of the photoelectric conversion layer (5).
Resumen de: WO2025089402A1
Provided is a method for manufacturing a photoelectric conversion element with improved adhesion between a charge transport layer and a photoelectric conversion layer. This method for manufacturing a photoelectric conversion element having a first electrode, a second electrode, and a photoelectric conversion layer that is positioned between the first electrode and the second electrode and includes a crystal with a perovskite structure is characterized by including, in order: a step for subjecting a surface of the photoelectric conversion layer to a passivation treatment; and a step for forming, between a layer formed by the passivation treatment and the first electrode, a charge transport layer that includes a cyclic conjugated compound and an insulating resin, said cyclic conjugated compound resulting from conjugate-bonding a plurality of pyrrole rings.
Resumen de: WO2025088993A1
Provided are a solar cell manufacturing method and a solar cell in which the occurrence of peeling or the like of each of layers constituting a solar cell is suppressed and deterioration of photoelectric conversion characteristics is suppressed. The solar cell manufacturing method is a method for manufacturing a solar cell having a layer configuration in which at least a photoelectric conversion layer, a hole transport layer, and an electrode are laminated in this order, the method comprising: a step for forming a nanofiber layer composed of nanofibers on a photoelectric conversion layer; and a step for forming a hole transport layer on the photoelectric conversion layer so as to cover the nanofiber layer. After the hole transport layer is formed, at least a part of the nanofiber layer protrudes from a surface opposite to the photoelectric conversion layer of the hole transport layer. The method further includes a step for forming an electrode on the surface of the hole transport layer so as to cover the nanofiber layer protruding from the surface.
Resumen de: WO2025087485A1
The invention relates to a solar cell testing device for measuring electrical characteristic data regarding a solar cell (1) having a top side (10) and a bottom side (11), the solar cell testing device comprising: - a transfer contact unit (14) which is designed such that, during a measurement, the transfer contact unit collects the first signals from the first contact strip (8) and transports them; and - a line (12) which is designed such that, during the measurement, the line collects the second signals from the second contact strip (9) and transports them. The transfer contact unit (14) is designed such that, during the measurement, the transfer contact unit transports signals collected from the first contact strip (8) to a side of the solar cell (1) which is opposite from the first contact strip (8) and on which the second contact strip (9) and the line (12) are disposed. The line (12) either is designed to further transport the first signals, and the second signals collected from the second contact strip (9), to the measuring device (3) in bundled form or is designed to be connected, on the side of the solar cell (1) on which the line is disposed, to the measuring device (3) while bundled with the transfer contact unit (14), so that the first and second signals are jointly transported, on the side of the solar cell (1) on which the second contact strip (9) is located, to the measuring device (3). Alternatively, an amplifier (15) is provided which is associated with the t
Resumen de: WO2025088966A1
Provided is a method for manufacturing solar cells that comprise a photosensitive layer that includes a perovskite compound, wherein it is possible to suppress the occurrence of band-like defects when the photosensitive layer is formed by spin coating and also to suppress the decrease in the photoelectric conversion efficiency arising from deterioration of the photosensitive layer due to residual moisture on a substrate. The present invention is a method for manufacturing solar cells that comprise an electrode substrate, a photosensitive layer that includes a perovskite compound, and a second electrode, wherein the method comprises: a first decompression step in which the electrode substrate is placed within a vessel of a spin coater and the interior of the vessel is decompressed; a first gas introduction step which, after the first decompression step, an inert gas is introduced into the vessel; a coating step in which, after the first gas introduction step, a coating liquid that will become the photosensitive layer is dripped to form a coating film while the electrode substrate is rotated; a second decompression step in which, after the coating step, the interior of the vessel is decompressed; and a heating step in which, after the second decompression step, the coating film is heated.
Resumen de: WO2025088231A1
The present invention relates to a longitudinal profile designed for a tab-type system for the quick installation of photovoltaic panels, the one-piece cross section of which results from combining a structural tubular profile with a rectangular central section and a vertical plane of symmetry. The profile consists of two additional closed contours with outer sides at 90 degrees to each other and parallel to the previous rectangular central section as an extension of its upper face, and an approximately T-shaped outer extension of the central rectangular section in respective lower vertices. The aforementioned two approximately T-shaped outer extensions are configured to be clasped externally and from below by an additional mechanism in the form of a fastening clamp in two pieces provided with respective upper retention tabs.
Resumen de: WO2025087341A1
A microstructure optical film structure having a latitude position optimization function, used for a solar light-collecting module installed (operating) in a direction perpendicular (orthogonal) to sunlight or in a direction perpendicular (orthogonal) to ground, and a method for collecting sunlight or ambient light by the light-collecting film. The microstructure optical film module comprises a photovoltaic (PV) module, and the module is suitable for various inorganic/organic PV wafers/photoelectric sensors/modules thereof and comprises an optimized microstructure optical film layer which can receive light of various angles incident from different latitudes. On the basis of the orientation of the microstructure optical film, a microstructure profile defined within a specific latitude range is optimized to collect solar energy/ambient light in a direction perpendicular to sunlight or in a direction perpendicular to ground. The present invention directly overcomes the key issue in the solar industry of how to reduce the system cost while ensuring unit energy conversion efficiency.
Resumen de: WO2025086986A1
The present application relates to a preparation method for a perovskite cell, a perovskite cell and a photovoltaic module. The preparation method comprises: manufacturing a perovskite cell, comprising: evaporating a compound having a chemical general formula of BX2 to form a skeleton layer; and spin-coating a compound having a chemical general formula of AX on the skeleton layer, and carrying out annealing and crystallization to form a perovskite layer; and irradiating the perovskite cell by using a light source for light injection, wherein rays of light emitted by the light source comprise rays of light having a wavelength of 300-800 nm, the state of the perovskite cell during light injection is an open circuit condition, and the ambient temperature of the perovskite cell during light injection is 20-40°C.
Resumen de: WO2025088521A1
A system and method for determination of parameters for the set up of fixed bridges for photovoltaic power plants. The system obtains user input comprising a first set of parameters associated with a fixed bridge from a user device. Further, the system determines a second set of parameters associated with the fixed bridge based on the first set of parameters. Furthermore, the system renders the determined second set of parameters including a first parameter indicative of a gap between a module edge of the first solar panel and a module edge of the second solar panel, a second parameter indicative of a slope angle across the fixed bridge, a third parameter indicative of a maximum angular difference between two sides of the fixed bridge, and a fourth parameter indicative of the width of a flat surface associated with a fail¬ safe location of an electronic device.
Resumen de: WO2025087459A1
A heterojunction cell (100) and a manufacturing method thereof, a photovoltaic module, and a photovoltaic system. The heterojunction cell (100) includes a substrate (10), and a first intrinsic amorphous silicon layer (20), a first silicon material layer (30), and a first transparent conductive oxide layer (40) stacked in sequence on a first side surface (C1) of the substrate (10). The heterojunction cell (100) further includes: a transparent conductive oxide pattern (50) and an anti-reflection layer (60) that are disposed on different regions of a surface of the first transparent conductive oxide layer (40) facing away from the substrate (10); and a first metal electrode (91) stacked on a surface of the transparent conductive oxide pattern (50) facing away from the substrate (10).
Resumen de: WO2025087385A1
A system and method for mitigating neutral point voltage fluctuations in an inverter circuit. The system comprises an adder circuit configured to receive a first input signal and a second input signal and provide a first output signal; a subtractor circuit configured to receive the first input signal and the second input signal and provide a second output signal; a first comparator circuit configured to receive the first output signal as a first input and a first control signal as a second input and provide a third output signal; a second comparator circuit configured to receive the second output signal as a first input and a second control signal as a second input and provide a fourth output signal; and a dual boost converter configured to receive the third and fourth output signals, the dual boost converter comprising a first boost converter and a second boost converter connected in series, wherein a midpoint between the first boost converter and the second boost converter is connectable to a neutral point of an inverter circuit. The first input signal is a DC input signal and the second input signal is based on a voltage differential between the first and second capacitors provided on opposite sides of the neutral point.
Resumen de: WO2025087332A1
The present application relates to an output power adjustment method and apparatus, and a computer device and a storage medium. The method comprises: acquiring sampling data corresponding to sampling parameters, and determining a fuzzy set to which the sampling data belongs, wherein the sampling parameters are related to the maximum power point of a photovoltaic power generation system; on the basis of a fuzzy rule corresponding to the fuzzy set, performing fuzzy reasoning on the sampling data, and determining fuzzy control information matching the sampling data, wherein the fuzzy control information comprises a parameter value adjustment direction of working parameters and a step-size adjustment direction of parameter value change amounts; performing defuzzification processing on the step-size adjustment direction to obtain a step-size adjustment value; and outputting a control signal matching the parameter value adjustment direction and the step-size adjustment value, wherein the control signal is used for changing an output power of the photovoltaic power generation system by adjusting parameter values of the working parameters. By using the method, an output power adjustment effect can be improved.
Resumen de: WO2025088519A1
A system and method for determination of parameters for the set up of flexible bridges for photovoltaic power plants. The system obtains user input comprising a first set of parameters associated with a flexible bridge from a user device. The system determines a second set of parameters associated with the flexible bridge based on the first set of parameters. The system renders the second set of parameters including a first parameter indicative of a maximum possible overlap between a male connector of the flexible bridge and a female connector of the flexible bridge, a second parameter indicative of a slope angle across the flexible bridge, and a third parameter indicative of a maximum detaching angle of the flexible bridge at zero vertical offsets and zero horizontal offsets.
Resumen de: WO2025087913A1
The invention relates to a photovoltaic power generation system comprising a plurality of panels (P1 to P2), each panel (P1 to P2) comprising a photovoltaic module (6) and being rotatably mounted on a support structure (2 to 4) so as to be able to rotate about an axis of rotation (A), a winding device (10) carried by a first attachment region (Z1) of a first panel (P1), and a sheet (14) configured to be attached by a first of its ends (E1) to the winding device (10) and by a second of its ends (E2) to a second attachment region (Z2) of a second panel (P2), so as to cover at least one portion of a region (ZS) of the ground located vertically beneath the sheet (14), wherein the system is configured such that the sheet (14) winds into the winding device (10) depending on a relative position of the first and second attachment regions (Z1, Z2).
Resumen de: WO2025087892A1
The present invention relates to novel materials and organic electroluminescent devices such as OLEDs (organic light emitting diodes) that contain these materials, for example as electron transport materials and/or matrix materials, optionally combined with another matrix material. The present invention also relates to mixtures and formulations that contain these novel materials.
Resumen de: WO2025087027A1
The present application relates to a photovoltaic bracket connecting device, a tracking bracket, and a photovoltaic system. The photovoltaic bracket connecting device comprises a support, a first connecting member, a mounting member, and a second connecting member; the support is used for being fixedly mounted at the top of a stand column; the first connecting member can be axially and rotatably supported on the support, and one axial end of the first connecting member is used for being connected to an end portion of one main beam; the mounting member is fixedly mounted on the support and is arranged opposite to the other axial end of the first connecting member, and the mounting position of the mounting member on the support is adjustable in the height direction of the support; the second connecting member can be rotatably supported on the mounting member in any direction, one axial end of the second connecting member is rotatably connected to the other axial end of the first connecting member in any direction, and the other axial end of the second connecting member is used for being connected to an end portion of the other main beam.
Resumen de: WO2025087166A1
The present invention relates to the technical field of solar cells, and relates to a solar cell based on a core-shell structure charge transport layer and a preparation method therefor. The solar cell comprises a conductive substrate, and a porous charge transport layer, a porous spacer layer, and a porous back electrode layer which are sequentially deposited on the conductive substrate, wherein at least one of the porous charge transport layer, the porous spacer layer, and the porous back electrode layer is further filled with a photoactive material, and the porous charge transport layer is a porous film formed by a composite charge transport material having a core-shell structure. In the present invention, a common charge transport material is replaced with a composite structure of a porous core-shell charge transport layer for bulk phase conduction and surface charge extraction, so that efficient charge extraction at a perovskite interface can be realized, and efficient carrier transport in a bulk phase can be ensured. The use of some wide-bandgap materials, such as silicon dioxide, as an ultra-thin tunneling layer can further effectively passivate a surface defect, thereby suppressing interfacial carrier recombination without affecting charge extraction.
Resumen de: WO2025086817A1
The present utility model relates to the technical field of photovoltaic tiles. Disclosed is a photovoltaic tile using perovskite cells. The photovoltaic tile sequentially comprises a substrate, a solar cell layer and a ceramic glaze layer from bottom to top, wherein the substrate is a ceramic substrate, and the solar cell layer is a perovskite cell layer. The photovoltaic tile further comprises a first barrier layer and a second barrier layer, wherein the first barrier layer is located between the ceramic glaze layer and the solar cell layer, the first barrier layer is transparent, and the second barrier layer is located between the substrate and the perovskite cell layer. According to the present utility model, an ultrathin perovskite module is formed between the substrate and the ceramic glaze layer, the photovoltaic tile based on the ultrathin perovskite module is not different from conventional tiles in thickness, and the photovoltaic tile of the present application further has the effects of prolonging the service life of the perovskite cells, improving the conversion efficiency of the perovskite cells and improving the use safety of the photovoltaic tile.
Resumen de: WO2025087704A1
The present invention relates to an electrically conductive adhesive for attaching solar cells together in a shingled photovoltaic module or in a ribbon-attached photovoltaic module, wherein the adhesive provides the required viscosity, adhesion and electrical conductivity, with low silver quantity.
Resumen de: WO2025087674A1
The invention relates to a holding part (100) which comprises, in a main direction from a lower face to an upper face of the holding part (100): - a base (200) which extends between a first end face and a second end face; - connecting means; and - a fastening portion (400) which is connected, in fixed connection, to the base (200) using the connecting means (300). The fastening portion (400) comprises a profile which extends between the two end faces, the fastening portion (400) defines a snap-fitting recess (401) which is configured to allow an anchoring clip to be inserted and snap-fitted in the recess, and the holding part (100) comprises cinching means which are configured to hold the base (200), by the lower face, so that it is secured to the structure.
Resumen de: WO2025086319A1
Disclosed in the present invention is a photovoltaic module, comprising a plurality of series battery string groups of which positive and negative electrodes are arranged in a staggered manner, wherein each battery string group comprises a plurality of parallel battery strings, each battery string comprises a plurality of series cells, a junction box is provided on first ends of every two adjacent battery string groups, positive and negative cables of the junction box are connected to the positive and negative electrodes of the battery string group, and second ends of every two adjacent battery string groups are connected to each other by means of a first busbar; and one or more first bypass diodes are provided between the first ends and the second ends, and the first bypass diodes are provided at any position between the first and second ends. The module power of the present invention can reach 800 W or above, thereby improving the module power, improving the string power, and achieving strong shading resistance and good power generation efficiency.
Resumen de: WO2025086509A1
The present invention relates to the technical field of photoelectric devices, in particular to a self-assembled monomolecular layer material based on a conjugated linker group, a preparation method therefor, and a solar cell. The chemical structural general formula of said self-assembled monomolecular layer material is shown as (1), wherein an electron donor is one of electron-rich groups and derivatives thereof, and L is a conjugated linker group. The introduction of the conjugated linker group into the self-assembled monomolecular layer material to replace a non-conjugated alkyl linker group can effectively achieve electron delocalization, thereby enhancing the intrinsic stability and hole extraction and transport capability of molecules in monomolecular self-assembled layers. In addition, the rigid structure thereof remarkably improves the degree of order and the density of molecular arrangement of monomolecular self-assembled layers. Moreover, the self-assembled monomolecular layer material can form dense monomolecular self-assembled layers on the surfaces of conductive substrates, thereby improving interface contact and passivating interface defects; and said material can form dipoles on the surfaces of the conductive substrates, thereby improving the surface work function and promoting hole transport.
Resumen de: WO2025086409A1
Disclosed in the present application are an anti-entanglement rolling brush, a rolling brush mechanism and a robotic vacuum cleaner. The anti-entanglement rolling brush comprises a rolling brush shell and a cutting assembly, wherein the rolling brush shell is provided with an accommodating cavity and a through groove in communication with the accommodating cavity, one end of the rolling brush shell is a driving end which is configured to be connected to a driving member, and the other end of the rolling brush shell is movably connected to a fixing portion which is provided with a fixed shaft extending toward the accommodating cavity; the cutting assembly comprises a connecting member and a blade which are arranged in the accommodating cavity, the blade being located in the through groove and movably connected to the rolling brush shell, and the connecting member being movably connected to the fixed shaft and connected to the blade; and the driving end drives the rolling brush shell to rotate to drive the blade and the connecting member to rotate, so that the connecting member moves along the fixed shaft and drives the blade to axially move along the fixed shaft relative to the rolling brush shell, so as to cut hair entangled around the rolling brush shell.
Resumen de: WO2025085978A1
Distributed energy storage systems and/or power optimisation systems and devices are disclosed. A distributed energy storage and/or power optimisation system comprises: at least one power source connected to an local grid; an local grid capable of transmitting electricity; at least one power connector connected to the local grid and the input switching element inside the energy storage device; at least one energy storage device comprising: an input switching element connected to control and enable power input to the battery charger from the power source; a battery charger connected to the input switching element and the battery cells; at least one battery cell connected to the battery charger and output switching element; an output switching element connected to enable power output from the device to the local grid; a controller capable of controlling the input switching element for charging and output switching element for discharging the energy storage device.
Resumen de: US2025143161A1
A flexible OLED display device includes a flexible display panel and a support member. The flexible display panel includes an active area, an extension portion and a bending portion connecting the active area and the extension portion. The support member is located between the active area and the extension portion. The active area, the support member and the extension portion are stacked, and a first distance is set between the support member and the bending portion in an extending direction parallel to the extension portion. The bending portion is substantially of a semicircular shape, and an inner radius of the semicircular shape is equal to a sum of a half of a thickness of the support member and a third distance between an upper surface of the support member and a lower surface of the active area, and the third distance is less than the thickness of the support member.
Resumen de: WO2025035185A1
A semi-submersible floating structure providing a rotatable or extendable solar panel array giving quadruple the solar collecting area compared to the supporting structure. The solar panels are deployed and retracted by either electric motors, or with the aid of ballast tanks which are filled and emptied in sequence. The panels can be retracted when severe offshore weather conditions are encountered. A hydrogen generation plant based on an electrolysis system is also provided with a compression offtake or power generated is directly stored in battery energy storage system.
Resumen de: US2025136749A1
A macromolecular compound for providing an organic semiconductor material exhibiting excellent conversion efficiency; a starting-material compound having high material design freedom; and methods for producing thereof. The macromolecular compound comprising a benzobisthiazole structural unit is represented by the formula (1):in the formula (1), T1, T2, B1, and B2 represent heteroaryl groups, the heteroaryl groups are optionally each independently substituted by an organosilyl group, a halogen atom, or a hydrocarbon group, and at least one of the heteroaryl groups represented by T1, T2, B1, and B2 is substituted by a halogen atom.
Resumen de: US2025136308A1
There is disclosed herein a drone system including: a trailer including a chassis and a draw bar extending from the chassis, the chassis being supported on a surface by one or more wheels and one or more support members; a plurality of cabins mounted to the chassis, with each cabin having an upper surface; at least one solar panel assembly mounted to an upper surface of one of the cabins; and a drone landing dock provided on an upper surface of another one of the cabins.
Resumen de: US2025135543A1
Provided herein are various enhancements for solar panels and associated solar arrays. In one example, a method of manufacturing includes forming, by an additive manufacturing process, a stackup of half-panels comprising connected pairs of the half-panels each having an integrated construction comprising a webbing structure connected to a skin layer substantially covering a face. The method also includes separating the stackup into detached pairs of the half-panels, assembling a selected detached pair of the half-panels into a full panel, and attaching photovoltaic cells to a selected face of the full panel.
Resumen de: US2025138684A1
Provided is a display device including a display panel including a display region and a non-display region, and an input sensing device disposed on the display panel. The input sensing device includes a first sensing insulation layer directly disposed on the display panel, a first sensing conductive layer disposed on the first sensing insulation layer, a second sensing insulation layer disposed on the first sensing insulation layer and covering the first sensing conductive layer, and a second sensing conductive layer disposed on the second sensing insulation layer. The second sensing insulation layer includes an organic film, and a first thickness of the first sensing conductive layer is greater than a second thickness of the second sensing conductive layer.
Nº publicación: US2025136551A1 01/05/2025
Solicitante:
BHOWMIK PRADIP [US]
HAN HAESOOK [US]
CHEN SI LOK [US]
BHOWMIK Pradip,
HAN Haesook,
CHEN Si Lok
Resumen de: US2025136551A1
Described herein are non-flammable dicationic ionic liquid electrolytes and the synthesis thereof. The electrolytes exhibit extremely high ionic-conductivities >0.01 S·cm−1. Also described are the use of non-flammable dicationic ionic liquid electrolytes in various energy storage devices such as lithium-ion batteries, rechargeable batteries, fuel cells, super capacitors, or solar cells.
BOPI
Sede Electrónica
